Digilent 410-308 Programming Module for use with FPGA Devices

RS Stock No.: 134-6473Brand: DigilentManufacturers Part No.: 410-308
brand-logo
View all in Development Tool Accessories

Technical Document

Specifications

Accessory Type

Programming Module

For Use With

FPGA Devices

Product details

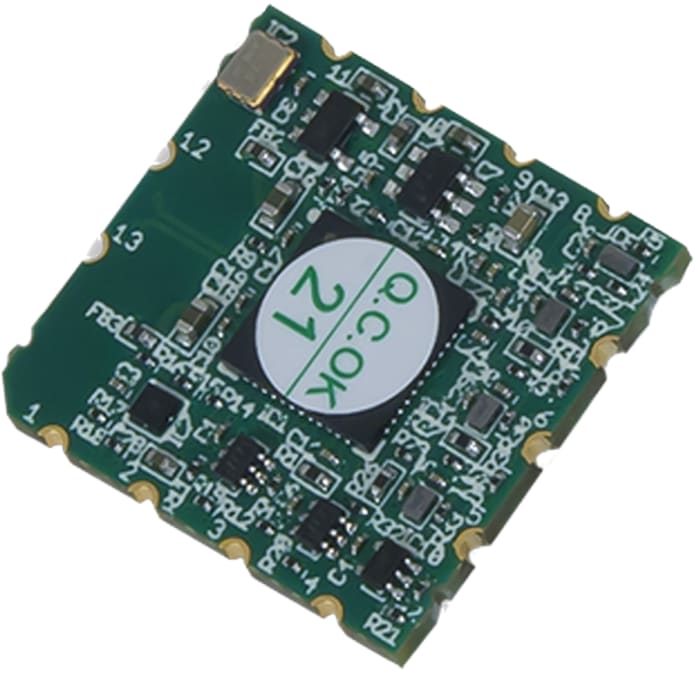

JTAG-SMT2 SMT Programming Module

The JTAG-SMT2 surface-mount programming module allows high-speed programming of Xilinx FPGA devices from a host PC. Users can solder the module directly onto a target board like any other component. Note: The JTAG-SMT2-NC part (RS 134-6473) does not have a USB connector fitted.

Features

• Compatible with all Xilinx tools
• Compatible with IEEE 1149.7-2009 Class T0 - Class T4 (includes 2-Wire JTAG)
• On-board ADP123AUJZ 300mA voltage regulator
• Separate Vref drives JTAG/SPI signal voltages
• Vref can be any voltage between +1.8V and +5V
• USB 2.0 HS port drives JTAG/SPI bus at up to 30Mbit/sec
• JTAG/SPI frequency settable by user
• PC connector: MicroUSB (JTAG-SMT2 only)
• GPIO pin allows processor reset of Xilinx Zynq platform

RS Product Codes

134-6434 JTAG-SMT2 SMT Module
134-6473 JTAG-SMT2-NC SMT Module (without USB connector)
