"Rittal Fan Filters"

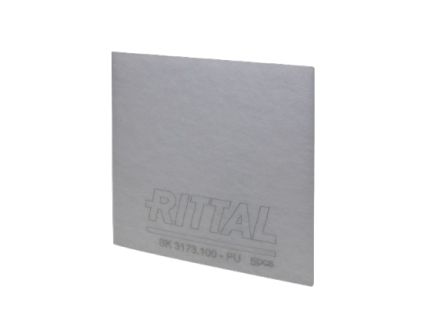

Rittal SK Series Fan Filter for 173 x 173 mm Fans, Chemical Fibre Filter 173mm 17 mm

Rittal SK Series Fan Filter for 226 x 226 mm Fans, Chemical Fibre Filter 226mm 17 mm

Rittal SK Series Fan Filter for 289 x 289 mm Fans, Chemical Fibre Filter, 289 mm 289mm 17 mm

Rittal SK Series Fan Filter for 120 x 120 mm Fans, Chemical Fibre Filter, 120 mm 120mm 12 mm

Rittal SK Series Fan Filter for 224 x 224 mm Fans, Chemical Fibre Filter, 221 mm 21mm 17 mm

Rittal SK Series Fan Filter for 264 x 95 mm Fans, Chemical Fibre Filter 264mm 17 mm

Rittal SK Series Fan Filter, Polyester Filter, 167 mm 167mm 21 mm

Rittal SK Series Fan Filter, Polyester Filter, 212.5 mm 212.5mm 21 mm

Rittal SK Series Fan Filter, Chemical Fibre Filter, 89 mm 89mm 10 mm

Rittal SK Series Fan Filter, Polyester Filter 280mm 21 mm

Rittal SK Series Fan Filter for 221 x 221 mm Fans, Chemical Fibre Filter, 221 mm 221mm 17 mm

Rittal SK Series Fan Filter for 320 x 599 mm Fans, Plastic Filter, Plastic Frame, 320 mm 599mm 8 mm

Rittal SK Series Fan Filter for 323 x 323 mm Fans, Chemical Fibre Filter, 289 mm 289mm 17 mm

Rittal SK Series Fan Filter for 177 x 177 mm, 204 x 204 mm Fans, Synthetic Fibre Filter, ABS Frame, 204 mm 204mm 24 mm

Rittal SK Series Fan Filter, Polyethylene Terephthalate Filter, 114 mm 114mm 14 mm

Rittal SK Series Fan Filter for 124 x 124 mm Fans, Chemical Fibre Filter, ABS Frame, 148.5 mm 148.5mm 24 mm

Rittal SK Series Fan Filter, Chemical Fibre Filter, ABS Frame, 173 mm 173mm 17 mm

Rittal SK Series Fan Filter for 92 x 92 mm Fans, ABS Frame, 116.5 mm 116.5mm 16 mm

Rittal SK Series Fan Filter for 204 mm Fans, ABS Frame, 204 mm 204mm 12.5 mm

Rittal SK Series Fan Filter for 224 x 224 mm Fans, ABS Frame, 255 mm 255mm 25 mm

Rittal SK Series Fan Filter, ABS Frame, 255 mm 255mm 12.5 mm

Rittal SK Series Fan Filter for 92 x 92 mm Fans, ABS Frame, 116.5 mm 116.5mm 10 mm

Rittal SK Series Filter Fan, 230V ac, AC, 100 m³/h Filtered, 105 m³/h Unimpeded, IP54, 204 mm, 204 mm x

Rittal SK Series Filter Fan, 230V ac, AC, 18 m³/h Filtered, 20 m³/h Unimpeded, IP54, 116.5 mm, 116.5 mm x
