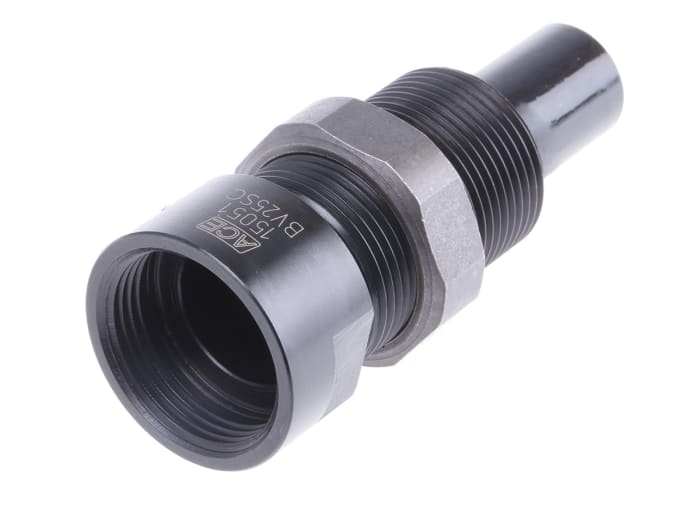

ACE Pneumatic Shock Absorber Side Load Adapter, BV25SC for use with MA600EUM, SC650EUM0-4, SC650EUM5-9 AH

RS Stock No.: 480-3819Brand: ACEManufacturers Part No.: BV25SC
brand-logo
View all in Shock Absorbers

Technical Document

Specifications

Brand

ACE

Product Type

Pneumatic Shock Absorber Side Load Adapter

Series

AH

For Use With

MA600EUM, SC650EUM0-4, SC650EUM5-9

Standards/Approvals

No

Product details

BV Series Side Load Adaptors

Compatible with ACE Adjustable, Miniature and Self-Compensating range of shock absorbers
Side load impact angles from 3° to 25°
Reduces wear on the rod bearing s and extends the life of the shock absorber
Application where rotating impact motion causes high side load force on the piston rod
