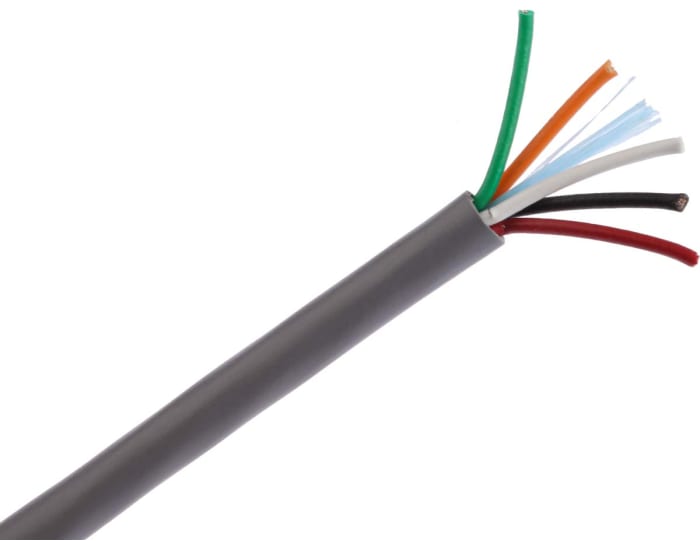

Alpha Wire Alpha Essentials Communication & Control Control Cable, 5 Cores, 0.35 mm², Unscreened, 30m, Grey PVC Sheath,

RS Stock No.: 828-2266Brand: Alpha WireManufacturers Part No.: 1175C SL005Distrelec Article No.: 30132818
brand-logo
View all in Control Cable

Technical Document

Specifications

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

5

Cross Sectional Area

0.35 mm²

American Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Minimum Bend Radius

10 x Diameter

Outer Diameter

5.08mm

Length

30m

Voltage Rating

150 V

Standards Met

CE, CSA, UL

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Core Strands

7/0.25 mm

Drain Wire

No

Conductor Resistance

16.3 Ω/1000ft

Minimum Operating Temperature

-20°C

Insulation material

PVC

Product details

Unshielded Multi-Conductor PVC Cable 300 V

A multi conductor, industrial cable with tinned copper conductors, PVC insulation and overall PVC jacket. Designed for various applications including control & processing, communications, instrumentation and audio systems.

Features and Benefits

Tinned copper conductors that resist corrosion
PVC insulation
PVC jacket

Approvals

UL, CSA

Stock information temporarily unavailable.

AED 378.26

AED 378.26 1 Reel of 30 Metres (ex VAT)

AED 397.17

AED 397.17 1 Reel of 30 Metres (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 5 Cores, 0.35 mm², Unscreened, 30m, Grey PVC Sheath,

1

Available in multiples of 1
1AED 378.26
2AED 756.52
3AED 1,134.79
4AED 1,513.05
5AED 1,891.31
6AED 2,269.58
7AED 2,647.84
8AED 3,026.10
9AED 3,404.36
10AED 3,782.62
11AED 4,160.89
12AED 4,539.15
13AED 4,917.41
14AED 5,295.68
15AED 5,673.94

AED 378.26

AED 378.26 1 Reel of 30 Metres (ex VAT)

AED 397.17

AED 397.17 1 Reel of 30 Metres (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 5 Cores, 0.35 mm², Unscreened, 30m, Grey PVC Sheath,
Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 378.26
2AED 756.52
3AED 1,134.79
4AED 1,513.05
5AED 1,891.31
6AED 2,269.58
7AED 2,647.84
8AED 3,026.10
9AED 3,404.36
10AED 3,782.62
11AED 4,160.89
12AED 4,539.15
13AED 4,917.41
14AED 5,295.68
15AED 5,673.94

Stock information temporarily unavailable.

Please check again later.

Technical Document

Specifications

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

5

Cross Sectional Area

0.35 mm²

American Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Minimum Bend Radius

10 x Diameter

Outer Diameter

5.08mm

Length

30m

Voltage Rating

150 V

Standards Met

CE, CSA, UL

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Core Strands

7/0.25 mm

Drain Wire

No

Conductor Resistance

16.3 Ω/1000ft

Minimum Operating Temperature

-20°C

Insulation material

PVC

Product details

Unshielded Multi-Conductor PVC Cable 300 V

A multi conductor, industrial cable with tinned copper conductors, PVC insulation and overall PVC jacket. Designed for various applications including control & processing, communications, instrumentation and audio systems.

Features and Benefits

Tinned copper conductors that resist corrosion
PVC insulation
PVC jacket

Approvals

UL, CSA
