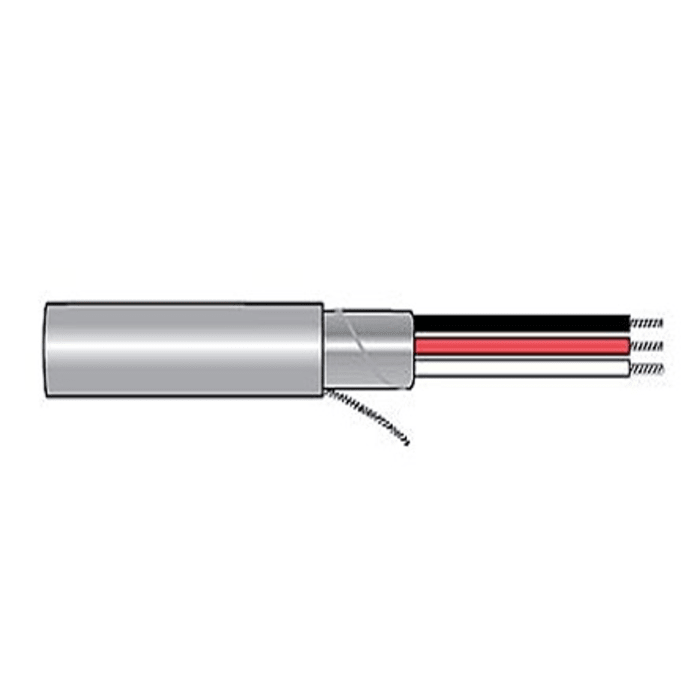

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.5mm² 20 AWG, Screened, 500 ft, Grey

RS Stock No.: 277-5994Brand: Alpha WireManufacturers Part No.: 2413C SL022
brand-logo
View all in Control Cable

Technical Document

Specifications

Brand

Alpha Wire

Product Type

Control Cable

Series

Alpha Essentials Communication & Control

Number of Cores

3

Conductor Material

Tin Copper Wire

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Screened/Unscreened

Screened

Armoured

No

Outside Diameter

0.205in

Cable Length

500ft

Voltage

300Vrms

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

75°C

Standards/Approvals

UL AWM/STYLE 2093, CE: EU Low Voltage 2014/35/EU, CSA International C(UL) TYPE CMG 75°C FT4

Hazardous Area Certification

No

Cable CSA

0.5mm²

American Wire Gauge

20AWG

Fire Behaviour

VW-1

Core Strands

3

View all in Control Cable

Stock information temporarily unavailable.

AED 1,846.82

AED 1,846.82 1 Box of 152 Metres (ex VAT)

AED 1,939.16

AED 1,939.16 1 Box of 152 Metres (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.5mm² 20 AWG, Screened, 500 ft, Grey

1

Available in multiples of 1
1AED 1,846.82
2AED 3,693.64
3AED 5,540.46
4AED 7,387.28
5AED 9,234.10
6AED 11,080.92
7AED 12,927.74
8AED 14,774.56
9AED 16,621.38
10AED 18,468.20
11AED 20,315.02
12AED 22,161.84
13AED 24,008.66
14AED 25,855.48
15AED 27,702.30

AED 1,846.82

AED 1,846.82 1 Box of 152 Metres (ex VAT)

AED 1,939.16

AED 1,939.16 1 Box of 152 Metres (inc. VAT)

Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.5mm² 20 AWG, Screened, 500 ft, Grey

Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 1,846.82
2AED 3,693.64
3AED 5,540.46
4AED 7,387.28
5AED 9,234.10
6AED 11,080.92
7AED 12,927.74
8AED 14,774.56
9AED 16,621.38
10AED 18,468.20
11AED 20,315.02
12AED 22,161.84
13AED 24,008.66
14AED 25,855.48
15AED 27,702.30

Technical Document

Specifications

Brand

Alpha Wire

Product Type

Control Cable

Series

Alpha Essentials Communication & Control

Number of Cores

3

Conductor Material

Tin Copper Wire

Jacket Material

Polyvinyl Chloride

Jacket Colour

Grey

Screened/Unscreened

Screened

Armoured

No

Outside Diameter

0.205in

Cable Length

500ft

Voltage

300Vrms

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

75°C

Standards/Approvals

UL AWM/STYLE 2093, CE: EU Low Voltage 2014/35/EU, CSA International C(UL) TYPE CMG 75°C FT4

Hazardous Area Certification

No

Cable CSA

0.5mm²

American Wire Gauge

20AWG

Fire Behaviour

VW-1

Core Strands

3
