Amphenol Communications Solutions Delta D 37 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector, with M3
Technical Document
Specifications
Number of Contacts
37
Product Type
D-Sub Connector
Current
5A
Orientation
Right Angle
Mount Type
Through Hole
Connector Gender
Female
D-Sub Shell Size
D
Mounting Hardware
M3 Threaded Insert
Minimum Operating Temperature
-55°C
Termination Type
Solder
Contact Gender
Female
Maximum Operating Temperature
125°C
Standards/Approvals
No
Series
Delta D
Contact Material
Bronze
Contact Plating
Gold over Nickel
Pitch
2.76mm
Country of Origin
India
Product details

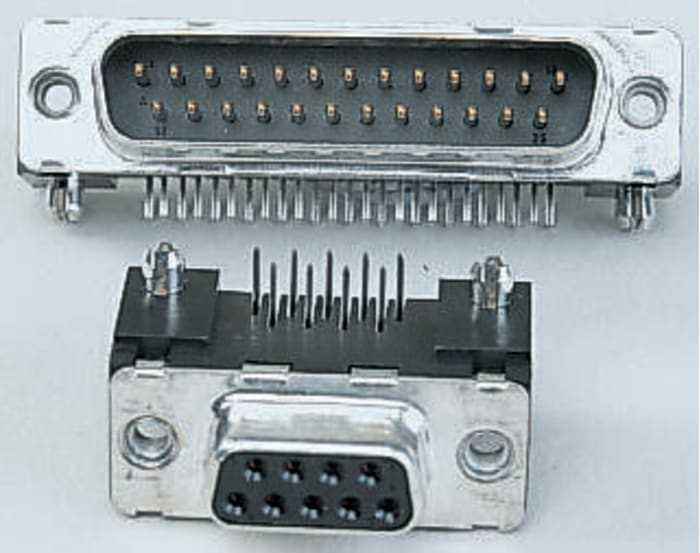

Delta-D Series Angled M3 Connectors with Harpoons
Connectors with a pitch of 2.54 mm between rows with M3 threaded insert.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 20.65
AED 20.65 Each (ex VAT)
AED 21.68
AED 21.68 Each (inc. VAT)
1
AED 20.65
AED 20.65 Each (ex VAT)
AED 21.68
AED 21.68 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 9 | AED 20.65 |
| 10 - 49 | AED 15.94 |
| 50 - 99 | AED 15.41 |
| 100 - 199 | AED 15.30 |
| 200+ | AED 15.09 |
