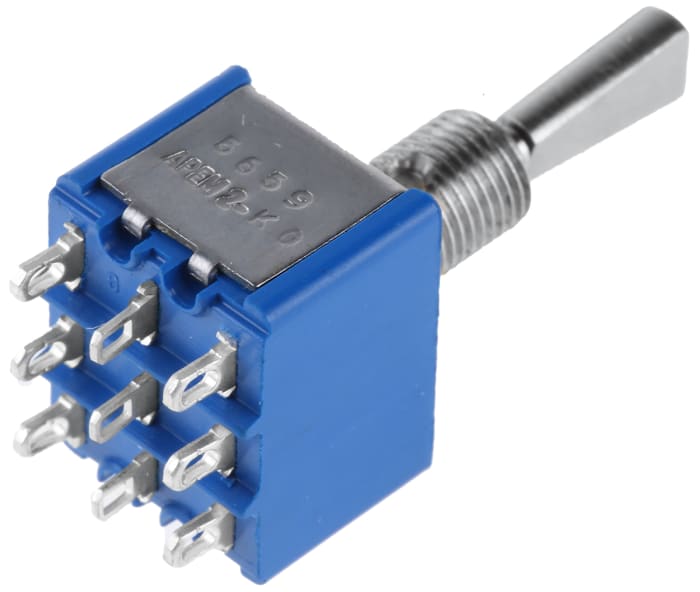

APEM Toggle Switch, Panel Mount, On-Off-On, 3PDT, Solder Terminal, 30 V dc, 250 V ac
Technical Document
Specifications
Brand
ApemProduct Type
Toggle Switch
Contact Configuration
3PDT
Switch Operation
On-Off-On
Switch Contact Current
4A
Mount Type
Panel
Terminal Type
Solder
Illuminated
No
Panel Cutout Size
6.5 mm
Actuator Length
11.4mm
Minimum Operating Temperature
-40°C
Contact DC Voltage
30V dc
Contact AC Voltage
250V ac
Actuator Material
Brass
Maximum Operating Temperature
85°C
Switch Configuration
On-Off-On
Height
35.3mm
Length
21.2mm
Standards/Approvals
CECC, CSA, RoHS, UL
Width
13.2mm
Series
5000
Mechanical Life
100000Operations
Country of Origin
France
Product details
Toggle Switches, Flat Lever
Panel mount switches with a large variety of contact configurations
Solder lug termination. Bush thread 1/4 - 40UNS (6.35 - 4UNS)
Brass actuator and Diallyl Phthalate case
Silver contacts
Panel cut-out 6.5 mm
Approvals
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 98.92
AED 98.92 Each (ex VAT)
AED 103.87
AED 103.87 Each (inc. VAT)
1
AED 98.92
AED 98.92 Each (ex VAT)
AED 103.87
AED 103.87 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | AED 98.92 |
| 25 - 49 | AED 81.11 |
| 50 - 99 | AED 74.26 |
| 100 - 249 | AED 69.28 |
| 250+ | AED 63.29 |
