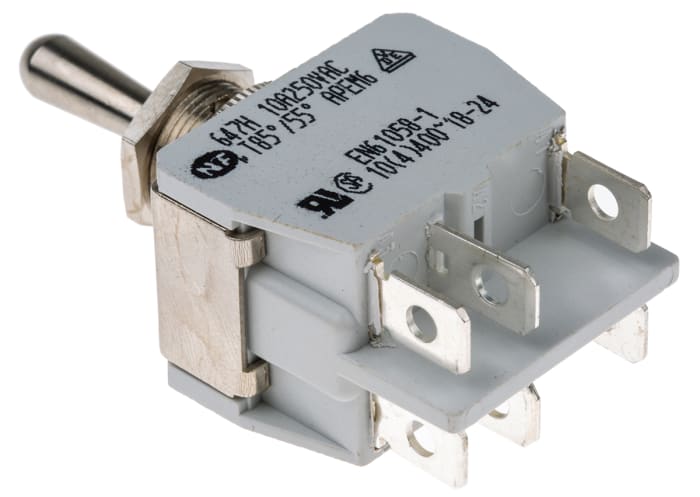

APEM Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Lug Terminal, 250V ac
Technical Document
Specifications
Brand
ApemContact Configuration
DPDT
Switch Operation
(On)-Off-(On)
Contact Current Rating
10 A
Mounting Type
Panel Mount
Terminal Type
Solder Lug
Illuminated
No
Panel Cut Out Diameter
12.2mm
Actuator Length
17.5mm
Actuator Material
Nickel Plated Brass
Voltage Rating
250V ac
Contact Material
Nickel Alloy, Silver
Contact Resistance
10mΩ
Panel Cut Out Size
12.2 (Dia.)mm
Minimum Operating Temperature
-20°C
Mechanical Life
10000 (Electrical)Cycles
Maximum Operating Temperature
+55°C
Standards Met
CSA, NF-VDE, UL, UL Recognized
Operating Temperature Range
-20 → +55°C
Country of Origin
France
Product details
Toggle Switches, Std, 15A Metal Lever
Single and double pole switches with a choice of flat insulated or nickel plated brass levers.
12mm mounting bush
250 ( 1/4 in.) terminals
Brass actuator and Melamine/Polyester case
Silver/Nickel Alloy contacts
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 70.35
AED 70.35 Each (ex VAT)
AED 73.87
AED 73.87 Each (inc. VAT)
1
AED 70.35
AED 70.35 Each (ex VAT)
AED 73.87
AED 73.87 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 24 | AED 70.35 |
| 25 - 49 | AED 57.64 |
| 50 - 99 | AED 53.08 |
| 100 - 249 | AED 50.30 |
| 250+ | AED 46.78 |
