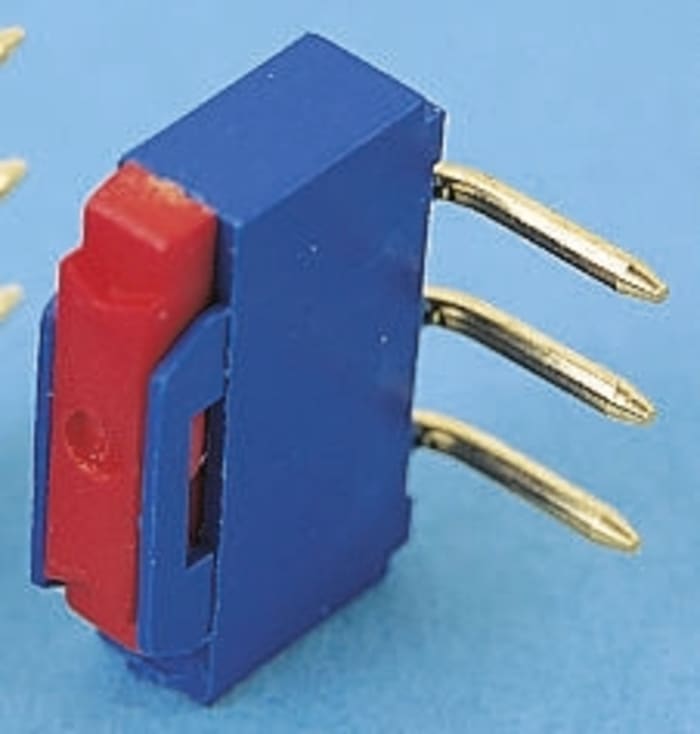

APEM PCB Slide Switch SPDT Latching 500 mA V ac @ 12 Slide
Technical Document
Specifications
Brand
ApemContact Configuration
SPDT
Mounting Type
PCB
Switch Operation
Latching
Contact Current Rating
500 mA V ac @ 12
Terminal Type
Through Hole
Actuator Type
Slide
Length
10mm
Width
2.6mm
Depth
6.5mm
Dimensions
10 x 6.5 x 2.6mm
Contact Resistance
20mΩ
Voltage Rating
12V
Minimum Operating Temperature
-40°C
Operating Temperature Range
-40 → +85°C
Maximum Operating Temperature
+85°C
Actuator Material
Glass Fibre Reinforced PA
Contact Material
Gold Plated Nickel
Product details
Flush actuators series NK236
Miniature single-pole slide switch with flush actuator
2.54mm PCB mounting pitch
End-stackable body style
Gold plated contacts
Ideal for replacing pin and jumper switches
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 64.31
AED 12.862 Each (In a Pack of 5) (ex VAT)
AED 67.53
AED 13.505 Each (In a Pack of 5) (inc. VAT)
5
AED 64.31
AED 12.862 Each (In a Pack of 5) (ex VAT)
AED 67.53
AED 13.505 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 20 | AED 12.862 | AED 64.31 |
| 25 - 45 | AED 11.76 | AED 58.80 |
| 50 - 120 | AED 8.82 | AED 44.10 |
| 125 - 245 | AED 8.085 | AED 40.42 |
| 250+ | AED 7.77 | AED 38.85 |
