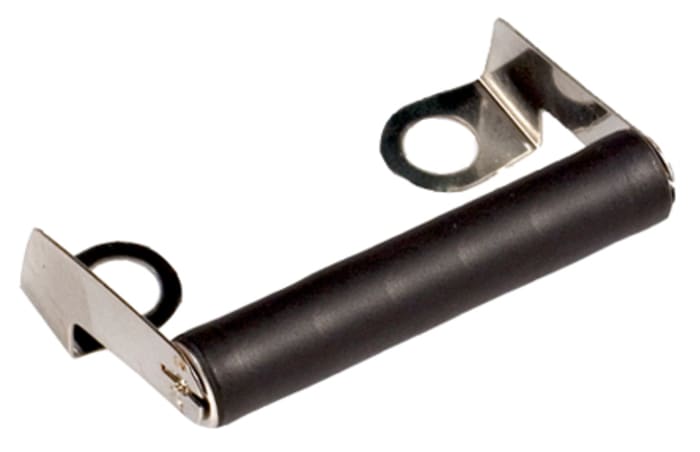

ATE Electronics 82 kΩ Wirewound Resistor 13 W 5 % 10SR-82K-J
Technical Document
Specifications
Brand
ATE ElectronicsProduct Type
Resistor
Resistance
82kΩ
Power Rating
13W
Tolerance ±
5%
Technology
Wirewound
Minimum Operating Temperature
-55°C
Lead Pitch Radial
5.1mm
Maximum Operating Temperature
350°C
Temperature Coefficient
±30 ppm/°C
Country of Origin
Italy
Product details
ATE Electronics SR Series Capacitor Balancing Resistors
The SR series of capacitor balancing resistors from ATE Electronics offers ±5% tolerance as standard. These resistors are available in E24 Series ohmic values. Featuring a dielectric strength of 1000 V ac, these balancing resistors can be used to minimise voltage imbalance from capacitors connected in a series. SR capacitor balancing resistors offer temperature coefficient values of ±100 to ±30 ppm from 10 Ω upwards. SR series resistors have been vibration tested to IEC 60571-1 standards. SR10 resistors have a 31.8mm centre and SR7 resistors have a 22.2mm centre. The fixing centre dimensions cover most of the screw terminal electrolytic capacitor offering.
Standards
IEC 60571-1
Capacitor Balancing Resistors
