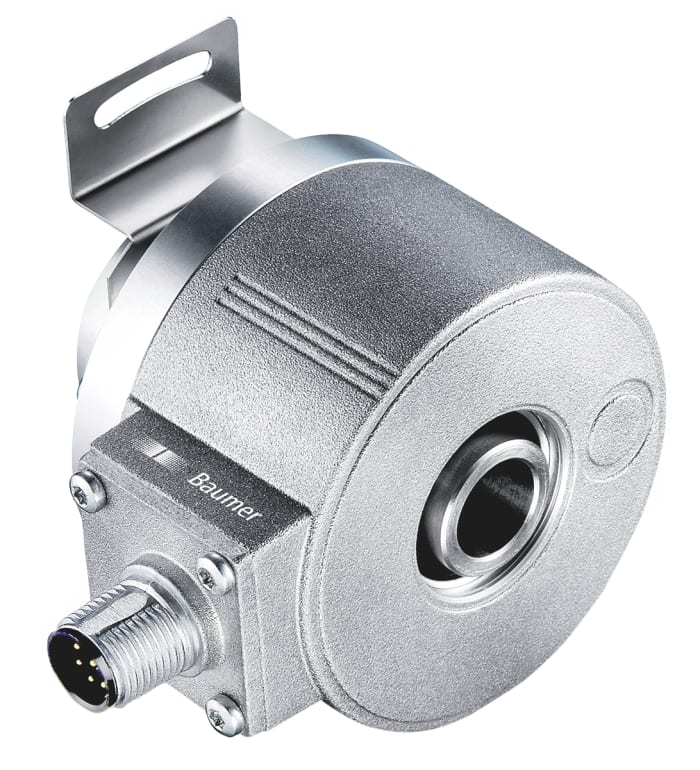

Baumer EIL580 Series Optical Incremental Encoder 30V, 1024 ppr ppr, HTL, Push Pull Signal, Hollow Type, 12 mm Shaft

Brand

Product Type

Incremental Encoder

Encoder Technology

Optical

Pulses Per Revolution

1024ppr

Series

EIL580

Maximum Revolutions

6000rpm

Output Signal Type

HTL, Push Pull

Shaft Type

Hollow

Shaft Diameter

12mm

Interface Type

Push Pull

Terminal Type

M23 Flange Connector

IP Rating

IP65

Maximum Supply Voltage

30V

Minimum Operating Temperature

-40°C

Overall Depth

41mm

Overall Height

70mm

Overall Width

58mm

Standards/Approvals

UL

Maximum Operating Temperature

85°C

Mount Type

Hollow Shaft Flange Mount

Switching Frequency

300kHz

Country of Origin

Germany
