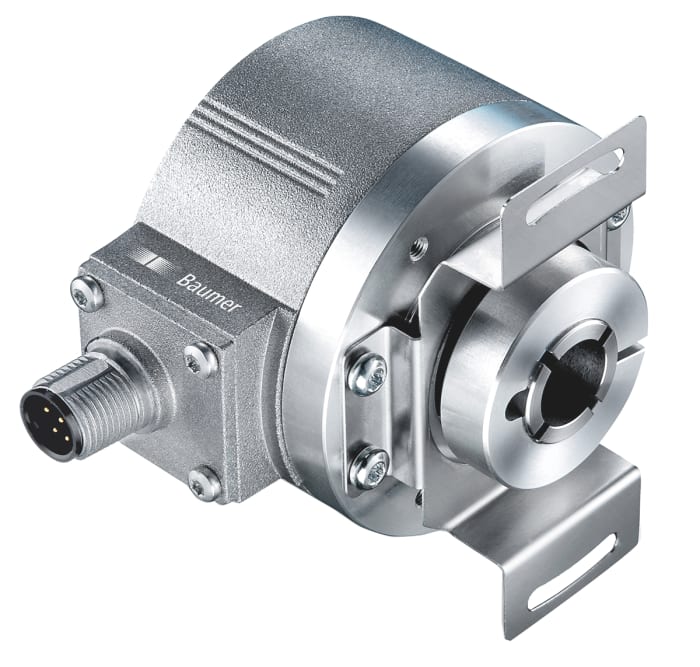

Baumer EIL580P Series Optical Incremental Encoder 30V dc, 65536 ppr ppr, TTL/HTL Signal, Hollow Type, 12 mm Shaft

RS Stock No.: 818-2967Brand: BaumerManufacturers Part No.: EIL580P-BT12.5FF.01024.B
brand-logo
View all in Motion Control Sensors

Technical Document

Specifications

Brand

Baumer

Product Type

Incremental Encoder

Encoder Technology

Optical

Pulses Per Revolution

65536ppr

Series

EIL580P

Maximum Revolutions

8000rpm

Output Signal Type

TTL/HTL

Shaft Type

Hollow

Shaft Diameter

12mm

Interface Type

TTL, RS422

Terminal Type

M23 Flange Connector

IP Rating

IP65

Maximum Supply Voltage

30V dc

Minimum Operating Temperature

-40°C

Overall Height

70mm

Overall Width

58mm

Standards/Approvals

UL

Maximum Operating Temperature

100°C

Mount Type

Blind Hollow Shaft Flange

Switching Frequency

300kHz

Country of Origin

Germany

Product details

EIL580 - Hollow shaft

EIL580 incremental encoders with blind or through hollow shaft.

Precise optical sensing
Axial, radial or tangential connection
High resistance to shock and vibrations
58 mm diameter
Die-cast aluminium housing

Baumer

Incremental rotary encoders.

View all in Motion Control Sensors
