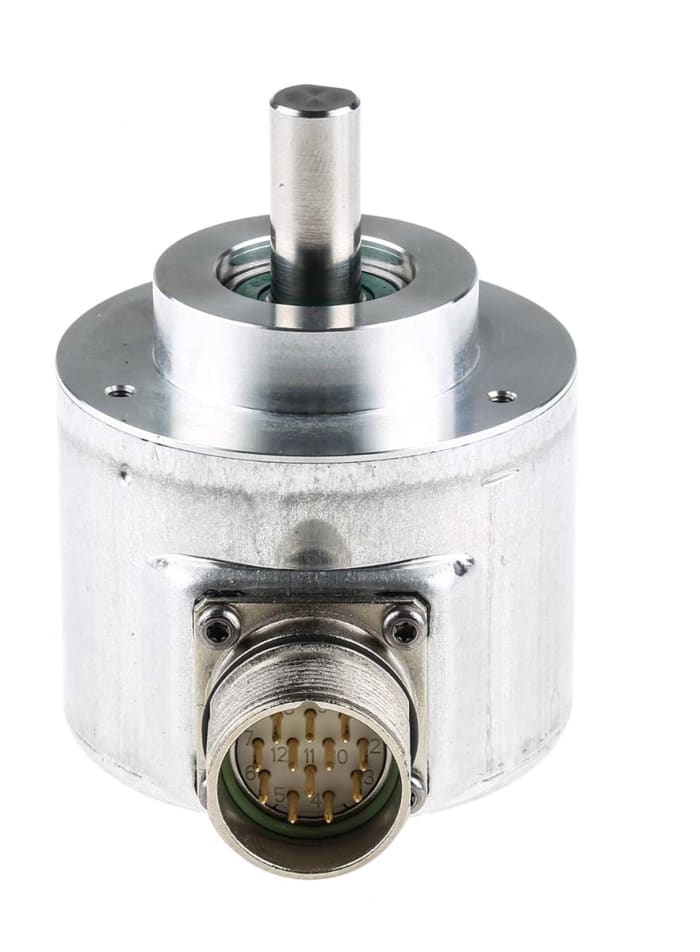

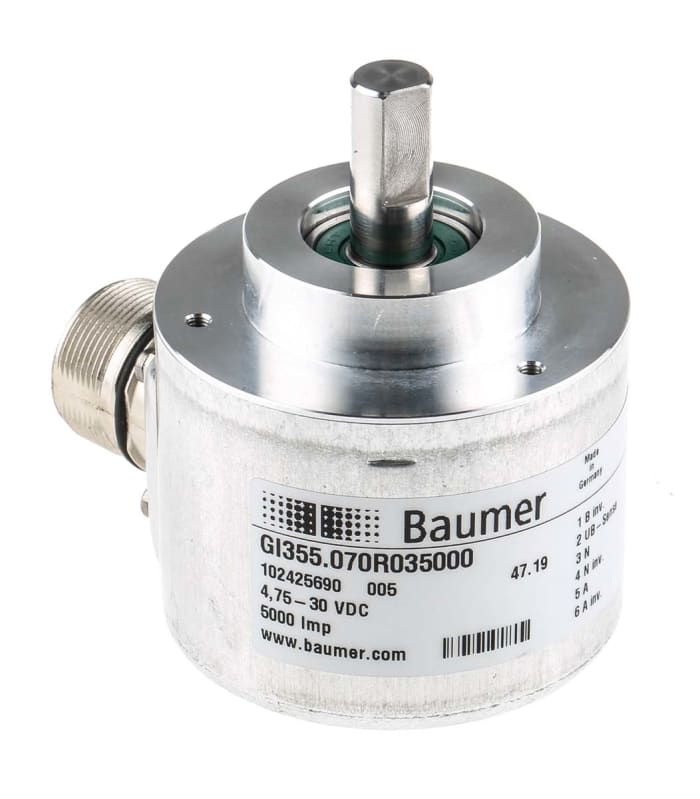

Baumer GI355 Series Optical Incremental Encoder, 5000 ppr, HTL/Push Pull Signal, Solid Type, 10mm Shaft

RS Stock No.: 481-7436Brand: BaumerManufacturers Part No.: GI355.070R035 (GI355.070C335)
brand-logo
View all in Motion Control Sensors

Technical Document

Specifications

Brand

Baumer

Encoder Technology

Optical

Pulses Per Revolution

5000

Series

GI355

Maximum Revolutions

10000rpm

Output Signal Type

HTL/Push Pull

Shaft Type

Solid

Supply Voltage

4.75 → 30 V dc

Shaft Diameter

10mm

IP Rating

IP54

Overall Width

58mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+85°C

Mounting Type

Clamping Flange

Connection Type

Flange connector M23

Switching Frequency

≤150 kHz

Country of Origin

Germany

Product details

Universal incremental coders Ø 58, type GI355 and GI356

The coder can be powered by a wide supply range of between 4.75 and 30 Vdc.
Universal output stage, compatible with Totem pole, NPN or PNP and RS422 or TTL line transmitter.
Resolution up to 10,000 pulses / turn.
A, B, Top zero and complemented output signals
Standard flange with 10 mm (GI355) axis or synchro flange with 6 mm (GI356) axis (See RS 481-7212.)
Front fixing by screws or bracket support (optional).
Connection via supplied radial connector.
Shielded cable connected to the connector available as an option.
Small coders, efficient and robust.
Application: robotics, metal or wood working, paper, textiles, packaging machinery, etc.
