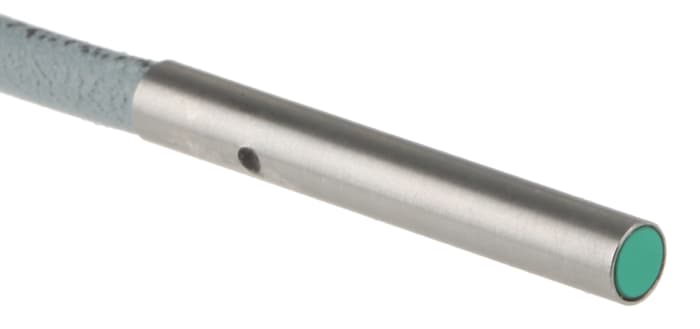

Baumer Inductive Smooth Barrel Proximity Sensor, 0.8 mm Detection, PNP NO, 10 → 30 V dc

Name: Baumer Inductive Smooth Barrel Proximity Sensor, 0.8 mm Detection, PNP NO, 10 → 30 V dc
Brand: Baumer
SKU: 4370684
Availability: LimitedAvailability

RS Stock No.: 437-0684Brand: BaumerManufacturers Part No.: IFRM 03P1501/L

View all in Proximity Sensors

Technical Documents

Specifications

Brand

Baumer

Sensor Technology

Inductive

Body Style

Smooth Barrel

Detection Range

0.8 mm

Output Function

Digital Switching Output Type

PNP

Cable Length

Connection Type

Pre-Cabled

Supply Voltage

10 → 30 V dc

Length

22mm

IP Rating

IP67

Mounting Type

Flush

Housing Material

Stainless Steel

Maximum dc Voltage

30V

Diameter

3 mm

Minimum Operating Temperature

-25°C

Switching Current

100 mA

Reverse Polarity Protection

Yes

Switching Frequency

3 kHz

Maximum Operating Temperature

+75°C

Maximum Switching Frequency

3kHz

Standards Met

CE, cULus Listed, EAC

Short Circuit Overload Protection

Yes

Shielding

Shielded

Country of Origin

Switzerland

Product Details

Ultra-Miniature Sensors (Wired)

PUR sensing face

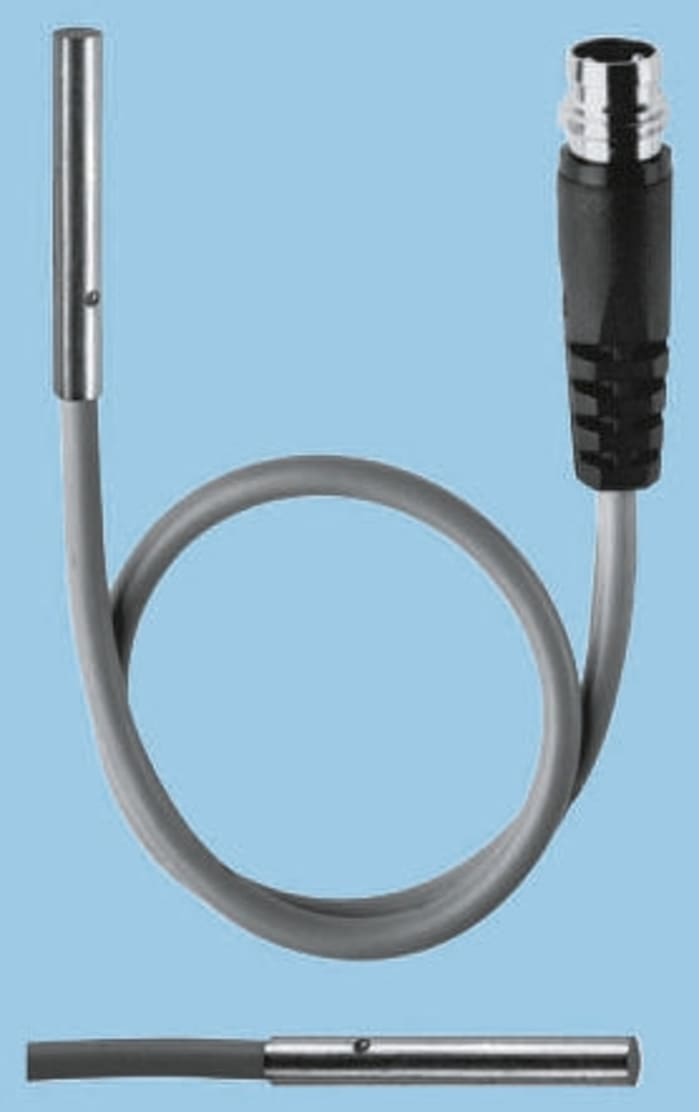

500mm Pre-Wired with connector or Flylead types
Flylead is 200mm in length and is terminated with a M8 connector
437-0678 is M8 connector on lead
437-0684 is pre-wired

Smooth Barrel

3-wire flush mounting, stainless steel bodied sensors, protected to IP67 with an operating temperature range of –25 to +75°C. All have short circuit and reverse polarity protection and provide an LED indication of the on/off status.
