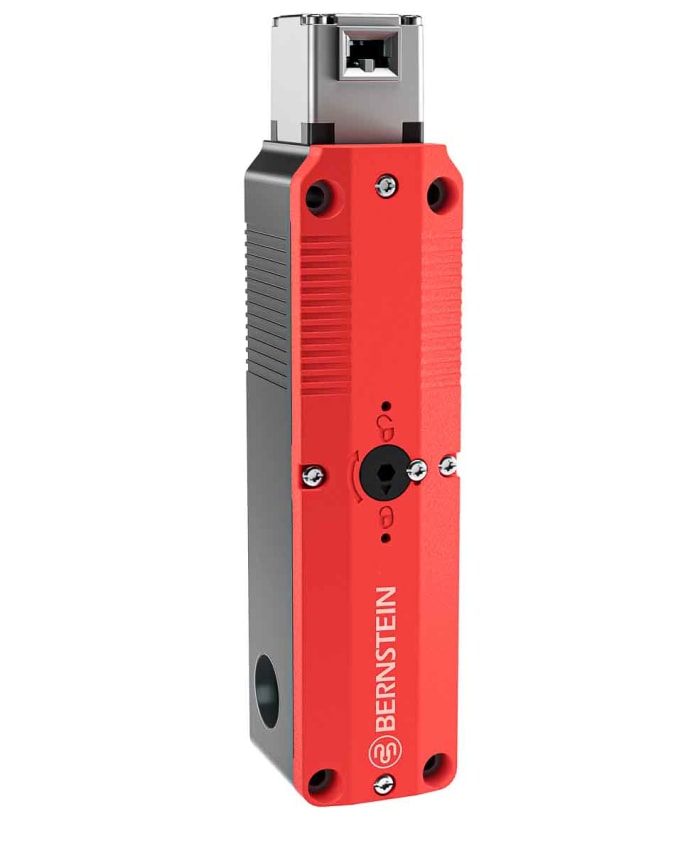

Bernstein AG SLC Safety Interlock Switch Actuator Included, Fibreglass Reinforced Thermoplastic, Key

Name: Bernstein AG SLC Safety Interlock Switch Actuator Included, Fibreglass Reinforced Thermoplastic, Key
Brand: Bernstein AG
SKU: 1895312
Availability: LimitedAvailability

RS Stock No.: 189-5312Brand: Bernstein AGManufacturers Part No.: 6018200016

View all in Safety Interlock Switches

Technical Documents

Specifications

Brand

Bernstein AG

Product Type

Safety Interlock Switch

Lock Type

Key

Actuator Included

Yes

Safety Contacts

1 NO/1 NC

Housing Material

Fibreglass Reinforced Thermoplastic

Series

SLC

Contact AC Voltage

240V ac

Minimum Operating Temperature

-25°C

Switch Contact Current

1.5A

IP Rating

IP67

Maximum Operating Temperature

55°C

Hazardous Area Certification

Number of Head Directions

Length

192mm

Depth

44mm

Standards/Approvals

UL, DIN, CSA

Width

42mm

Conduit Entry

M20

Country of Origin

Germany

Product Details

Lightweight yet robust: Hybrid of metal and plastic
Flexible contact assembly
Integrated manual release
Symmetrical design
Five actuating positions
Rotatable head (4x90°)
Fail-safe guard locking system
Optional emergency exit
Optional emergency release
M12 connector as an option
Enclosure: Thermoplastic, glass fibre reinforced
Cover: Thermoplastic, glass fibre reinforced
Operating device: Metal
Latching force: 1500 N
Ambient temperature: -25 °C to + 55 °C
Switching principle: 4 slow-action-contacts
Contacts
Rated operational voltage Ue: 240 V AC / 24 V DC
Utilization category:
AC-15, Ue / Ie 240 V / 1,5 A
DC-13, Ue / Ie 24 V / 1,5 A, 250 V / 0,11 A
Solenoid
Operating voltage: 24 V AC / DC or 110 V AC or 230 V AC
Safety data B10D: 2 x106 cycles
