binder Circular Connector, 2 Contacts, Panel Mount, Subminiature Connector, Plug, Male, IP40, 710 Series
Technical Document
Specifications
Brand
BinderNumber of Contacts
2
Product Type
Circular Connector
Mount Type
Panel Mount
Connector Size
Subminiature
Current
4A
Plug/Socket
Plug
Contact Gender
Male
IP Rating
IP40
Series
710
Orientation
Straight
Mating Type
Bayonet
Shell Size
10 mm
Termination Type
Solder
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Housing Material
Metal
Standards/Approvals
No
Contact Plating
Gold
Contact Material
Brass
Country of Origin
Germany
Product details

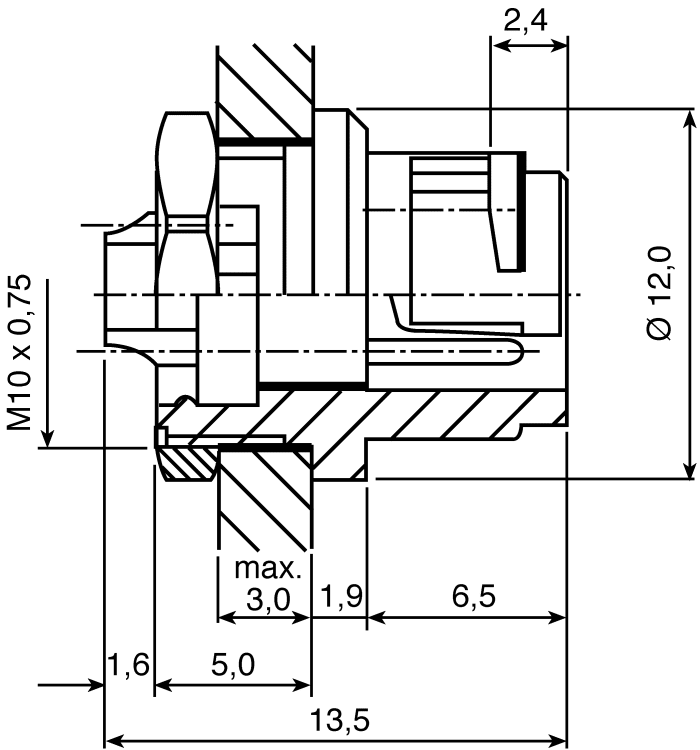

Panel Plug
Binder 710 - Plastic
The subminiature circular connectors in the 710 series have a bayonet joint. When mated they comply with protection type IP40.The distortion protection (coding lug) guarantees secure positioning. Strain relief is via a ferrule. Connection type: solder.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 38.15
AED 38.15 Each (ex VAT)
AED 40.06
AED 40.06 Each (inc. VAT)
1
AED 38.15
AED 38.15 Each (ex VAT)
AED 40.06
AED 40.06 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 49 | AED 38.15 |
| 50 - 99 | AED 34.08 |
| 100 - 249 | AED 32.47 |
| 250 - 499 | AED 28.73 |
| 500+ | AED 26.80 |
