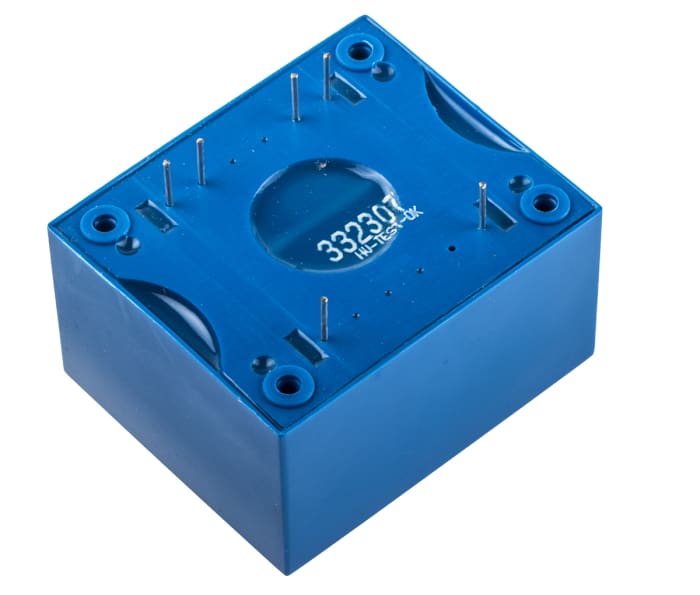

Block 15 V ac 2 Output Through Hole PCB Transformer, VDE, UL 7.5 VA

Transformers PCB Mount, Short Circuit Proof, VB & PT Series

• 230Va.c. 50 to 60Hz primary
• Single or twin secondary windings for series or parallel connection (For conformance reasons,0.35 to 3.2VA transformers with 2 x 15 and 2 x 18V outputs and all transformers with 2x 24V outputs should not have their secondaries connected in series as this means they will not meet the VDE 0550 approval)
• VB series (0.35 - 3.2VA) are inherently short circuit proof
• PT series (4.5 - 22VA) are protected by internal PTC device
• Compact design
• Vacuum epoxy resin moulded to UL94-V0 rating
• Double section glass fibre reinforced polyamide bobbins
• 100% electrical and flash tested
• High efficiency and low temperature rise
• Low inter-winding capacitance
• Low radiated noise
• Extra fixing holes for secure boarding mounting on 4.5VA and above

Standards

EN 61558

Approvals

ENEC 10; UL recognised component
