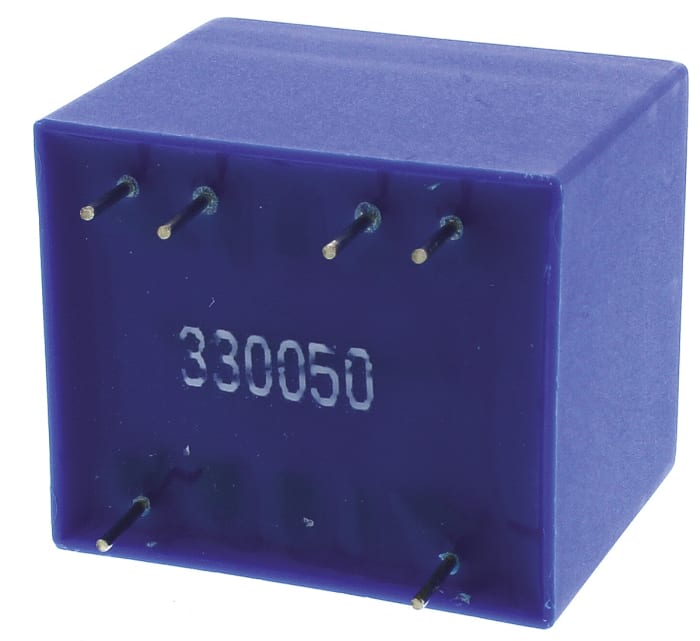

Block 2 x 12 V ac 2 Output Pin PCB Transformer, DIN EN 61558-2-6, ENEC 10 (VDE), CSA 22.2 No.66, EN 61558-2-6, UL

Name: Block 2 x 12 V ac 2 Output Pin PCB Transformer, DIN EN 61558-2-6, ENEC 10 (VDE), CSA 22.2 No.66, EN 61558-2-6, UL
Brand: Block
SKU: 3473473
Availability: LimitedAvailability

RS Stock No.: 347-3473Brand: BlockManufacturers Part No.: VB 2.3/2/12Distrelec Article No.: 156-00-663

View all in PCB Transformers

Technical Documents

Specifications

Brand

Block

Product Type

PCB Transformer

Secondary Voltage

2 x 12 V ac

Primary Voltage

230 V ac

Number of Outputs

Length

32.3mm

Width

29mm

Depth

27.3mm

Power

2.3VA

Weight

110g

Mount Type

Efficiency

59%

Maximum Operating Temperature

70°C

Minimum Operating Frequency

50Hz

Maximum Operating Frequency

60Hz

Standards/Approvals

DIN EN 61558-2-6, ENEC 10 (VDE), CSA 22.2 No.66, EN 61558-2-6, UL 5085-1/-2, VDE 0570 Part 2-6, cURus, IEC 61558-2-6

Country of Origin

Germany

Product Details

Transformers PCB Mount, Short Circuit Proof, VB & PT Series

230Va.c. 50 to 60Hz primary
Single or twin secondary windings for series or parallel connection (For conformance reasons,0.35 to 3.2VA transformers with 2 x 15 and 2 x 18V outputs and all transformers with 2x 24V outputs should not have their secondaries connected in series as this means they will not meet the VDE 0550 approval)
VB series (0.35 - 3.2VA) are inherently short circuit proof
PT series (4.5 - 22VA) are protected by internal PTC device
Compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
High efficiency and low temperature rise
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure boarding mounting on 4.5VA and above

Standards

EN 61558

Approvals

ENEC 10; UL recognised component

Alternative

Find out more

RS PRO 2 x 12 V ac 2 Output PCB PCB Transformer, CE, RoHS, IEC/BS/EN 61558-1, AS/NZS 61558.1, AS/NZS 61558.2.6,

RS Stock No.: 121-3829Brand: RS PRO

AED 57.86

Each (ex VAT)
