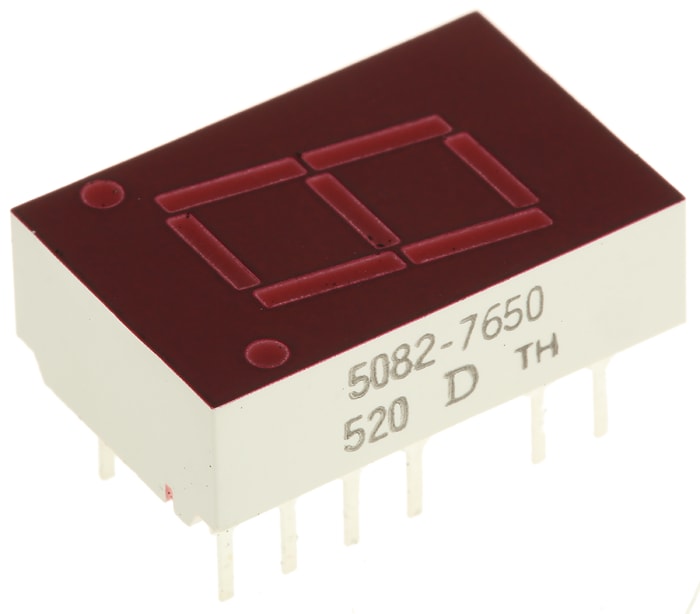

5082-7650 Broadcom 1 7 Segment LED Display Anode Red 1.1mcd Left Side 10.9 mm

RS Stock No.: 113-4441Brand: BroadcomManufacturers Part No.: 5082-7650
brand-logo
View all in LED Displays

Technical Document

Specifications

Brand

Broadcom

Display Type

7 Segment

Product Type

LED Display

Number of Characters

1

LED Colour

Red

Number of Segments

7

Dominant Wavelength

626 nm

Character Width

7mm

Character Height

10.9mm

Common Connection

Anode

Mount Type

Through Hole

External Width

12.7mm

External Height

19.1mm

External Depth

6.4mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Luminous Intensity

1.1mcd

Standards/Approvals

RoHS

Colour of Face

Red

Power Dissipation

105mW

Forward Voltage

2.1V

Forward Current

30mA

Decimal Orientation

Left Side

Product details

Single-digit 7-segment Red LED Displays

A range of single-digit 7-segment Red LED displays from Broadcom (Avago Technologies) in a variety of character heights. The range includes both left-hand and right-hand decimal point formats.

Broadcom 7-Segment LED Displays
