Broadcom Optical Encoder
Technical Document
Specifications
Product details
Miniature Hollow Shaft Encoders
500ppr encoders designed for fitting directly onto motor shafts etc. Both versions have 2 digital output waveforms which are 90° out of phase to provide resolution and direction information. However, the 3 channel version also provides a pulse once per revolution output (index) for added versatility
5V dc operation with TTL compatible outputs
-40 to +100°C operating temperature

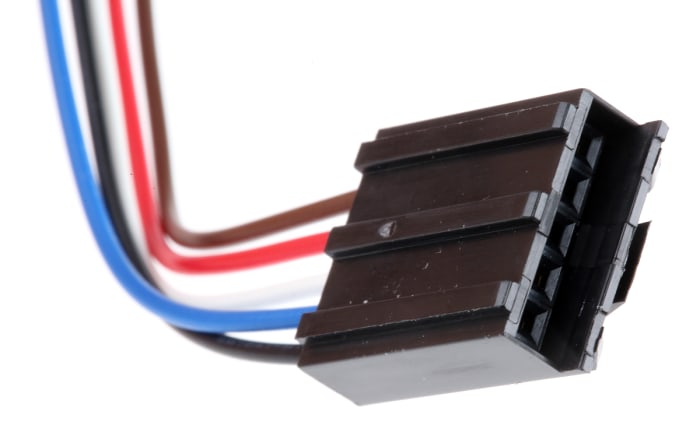

Connection via plug-in cable assemblies, available separately
Stock information temporarily unavailable.
AED 62.33
AED 62.33 Each (ex VAT)
AED 65.45
AED 65.45 Each (inc. VAT)
1
AED 62.33
AED 62.33 Each (ex VAT)
AED 65.45
AED 65.45 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 62.33 |
| 5 - 9 | AED 59.87 |
| 10+ | AED 57.24 |
