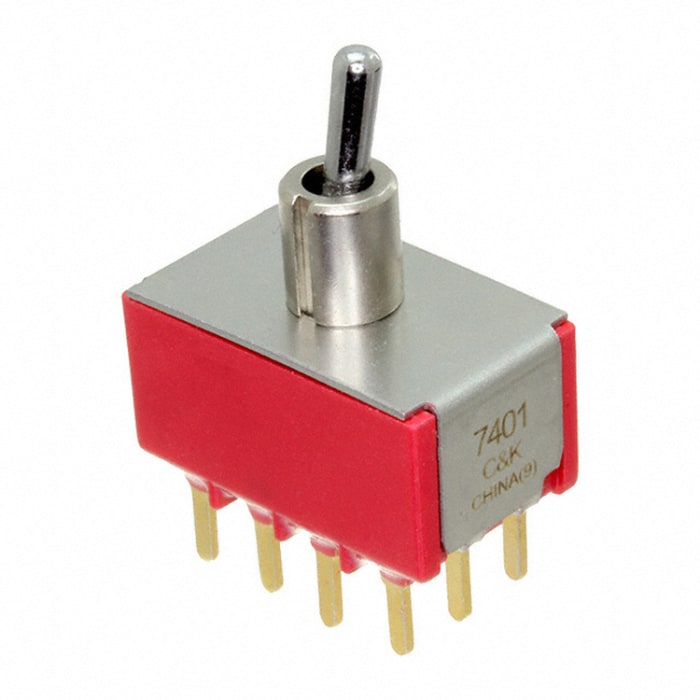

C & K Toggle Switch, Panel Mount Mount, On-None-On, 4PDT, Through Hole Terminal, 20 V, 20 V

RS Stock No.: 679-906Brand: C & KManufacturers Part No.: 7401T1CWCBE
brand-logo
View all in Toggle Switches

Technical Document

Specifications

Brand

C & K

Product Type

Toggle Switch

Contact Configuration

4PDT

Switch Operation

On-None-On

Mount Type

Panel Mount

Terminal Type

Through Hole

IP Rating

IP67

Illuminated

No

Panel Cutout Size

11.91 mm

Actuator Length

12.37mm

Contact DC Voltage

20V

Contact AC Voltage

20V

Minimum Operating Temperature

-30°C

Actuator Material

Brass

Maximum Operating Temperature

85°C

Switch Configuration

4PDT

Standards/Approvals

UL

Series

7000

Mechanical Life

100000Cycles

Country of Origin

Vietnam
