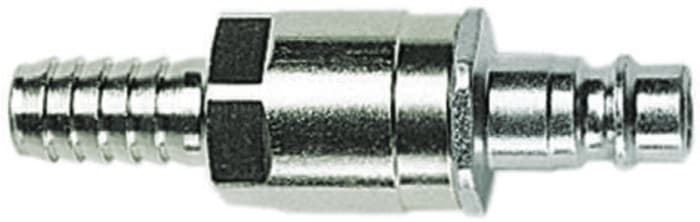

CEJN Steel Male Pneumatic Quick Connect Coupling, 8mm Hose Barb
Technical Document
Specifications
Brand
CEJNCoupling Gender
Male
Coupling Type
Quick Connect Coupling Plug
Manufacturer Series
310
Connection Type
Hose Barb
Hose Barb Connection
8mm
Material
Steel
Maximum Operating Pressure
16bar
Finish
Zinc Plated
Minimum Operating Temperature
-20°C
Seal Material
Nitrile Rubber
Maximum Operating Temperature
+100°C
Country of Origin
Sweden
Product details
CEJN 310 Series, 5.3mm Flow Diameter
CEJN series 310 offers a range of easy-to-grip couplings. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series 310 vented safety version is disconnected in two stages in order to vent the coupling and minimise the risk of sudden component separation, which has the potential to cause operator injury.
Nominal Flow Diameter 5.3 mm
Low connection force
Available in standard and safety versions
Two stage safety types
Fully automatic operation ensures easy handling
Interchanges with US Mil C 4109 1/4in. & Rectus 23//24
Zinc-plated steel body material
NBR seal material
Standards
A-A 59439 (former U.S standard MIL C 4109 1/4in.) vented safety version complies to ISO standard 4414 and EN 983
Interchanges to other Brand Profiles
Stock information temporarily unavailable.
Please check again later.
AED 24.45
Each (ex VAT)
AED 25.67
Each (inc. VAT)
1
AED 24.45
Each (ex VAT)
AED 25.67
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 4 | AED 24.45 |
| 5 - 9 | AED 23.70 |
| 10 - 24 | AED 23.50 |
| 25+ | AED 23.40 |
