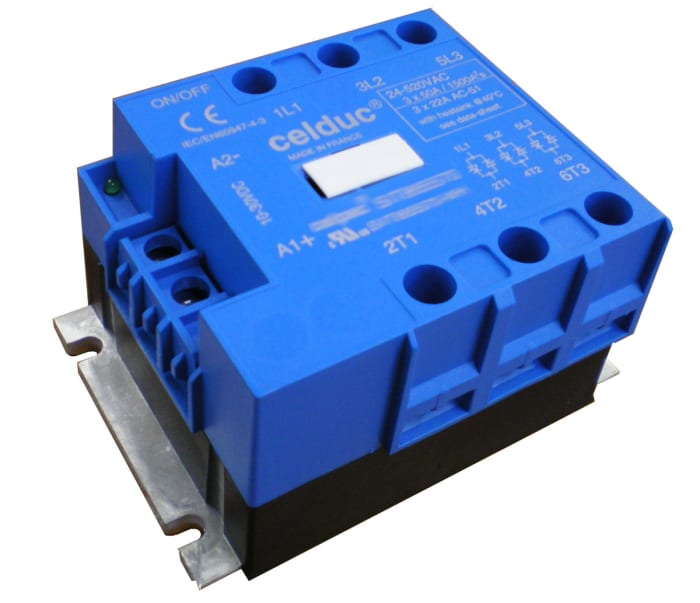

Celduc SGT 2G Series Solid State Relay, 125 A Load, Panel Mount, 520 V ac Load, 30 V dc Control
Technical Document
Specifications
Brand
CelducMaximum Load Current
125 A
Mounting Type
Panel Mount
Maximum Load Voltage
520 V ac
Minimum Load Voltage
24 V ac
Maximum Control Voltage
30 V dc
Minimum Control Voltage
4 V dc
Switching Type
Zero Cross
Control Voltage Range
4 → 30 V dc
Range
cel3pac
Minimum Load Current
5 mA
Number of Poles
3
Terminal Type
Screw
Output Device
Thyristor
Relay Type
Solid State Relay
Series
SGT 2G
Maximum Turn On Time
1/2 cycle
Load Voltage Range
24 → 520V ac
Dimensions
100 x 34.7 x 76.5mm
Minimum Operating Temperature
-40°C
Height
76.5mm
Maximum Operating Temperature
+85°C
Off State Leakage Current
1 mA
Length
100mm
Operating Temperature Range
-40 → +85°C
Depth
34.7mm
Special Features
Direct Copper Bonding (DCB) Technology, Zero Cross
Standards Met
CE, EAC, cURus
Country of Origin
France
