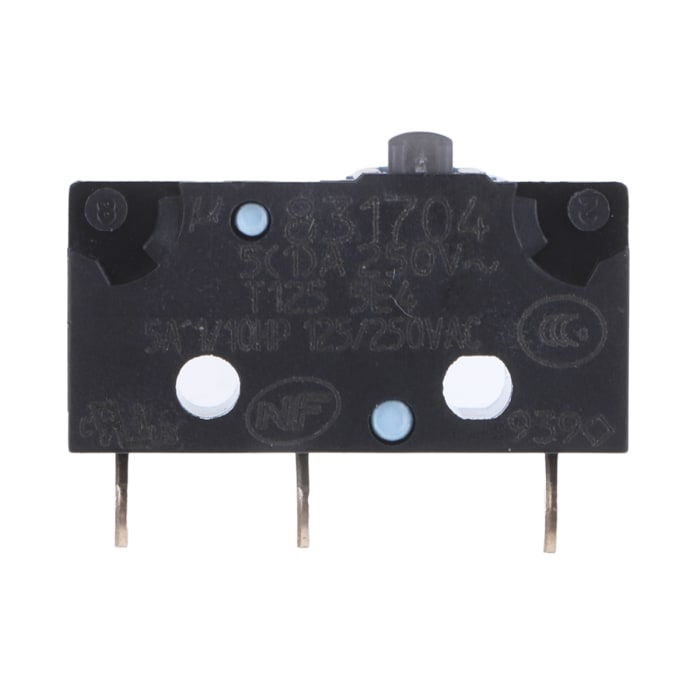

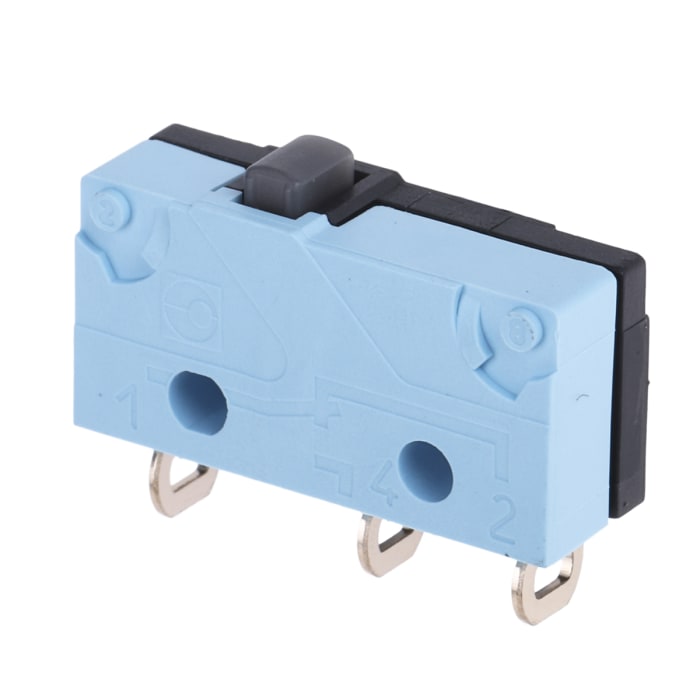

Crouzet Button Micro Switch, Solder Terminal, 5A, 250 V ac, SPDT, IP67
Technical Document
Specifications
Brand
CrouzetProduct Type
Micro Switch
Actuator Type
Button
Terminal Type
Solder
Switch Contact Current
5A
Contact Configuration
SPDT
Housing Material
Polyamide
IP Rating
IP67
Operating Force
0.6N
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
125°C
Microswitch Type
Subminiature
Contact AC Voltage
250V ac
Mechanical Life
3Operations
Hazardous Area Certification
ATEX
Standards/Approvals
BS, CSA, UL, UTE, VDE
Country of Origin
Mexico
Product details
V4 Subminiature Microswitches DIN 41635 B
Miniswitches available in two versions:
- standard inverter 5 A / 250 VAC
- low-level inverter: 0.1 A.
Choice of operation accessories (available separately): levers (flat or with rollers) are proposed in two lengths with two possible mounting positions on the microswitch.
Approvals
UTE; VDE; BS; UL; CSA etc.
Stock information temporarily unavailable.
AED 17.17
AED 17.17 Each (ex VAT)
AED 18.03
AED 18.03 Each (inc. VAT)
1
AED 17.17
AED 17.17 Each (ex VAT)
AED 18.03
AED 18.03 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 49 | AED 17.17 |
| 50 - 149 | AED 16.05 |
| 150 - 249 | AED 13.38 |
| 250 - 499 | AED 13.11 |
| 500+ | AED 12.95 |
