Technical Documents
Specifications
Brand
CrouzetProduct Type
Solid State Relay
Maximum Load Current
20A
Mount Type
Panel
Maximum Load Voltage
280V ac
Minimum Load Voltage
24V ac
Maximum Control Voltage
30V dc
Minimum Control Voltage
4V dc
Series
GN Mini
Terminal Type
FASTON
Minimum Operating Temperature
-40°C
Switching Function
Zero Cross Turn On
Maximum Operating Temperature
80°C
Standards/Approvals
CE, UL508, UKCA, cRUus
Off State Leakage Current
1mArms
Capacitance
0.8pF
Country of Origin
France
Product Details

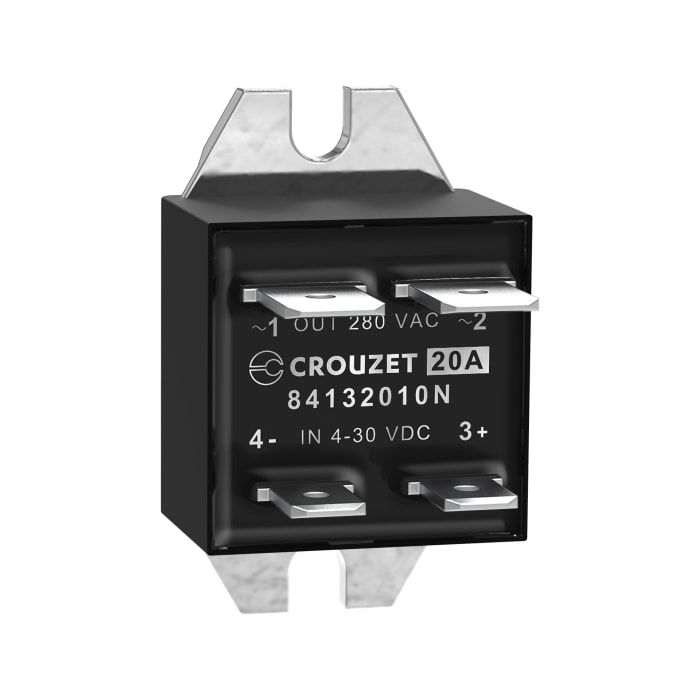

The Crouzet Solid State Relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.
Stock information temporarily unavailable.
AED 177.46
AED 177.46 Each (ex VAT)
AED 186.33
AED 186.33 Each (inc. VAT)
1
AED 177.46
AED 177.46 Each (ex VAT)
AED 186.33
AED 186.33 Each (inc. VAT)
Stock information temporarily unavailable.
1
