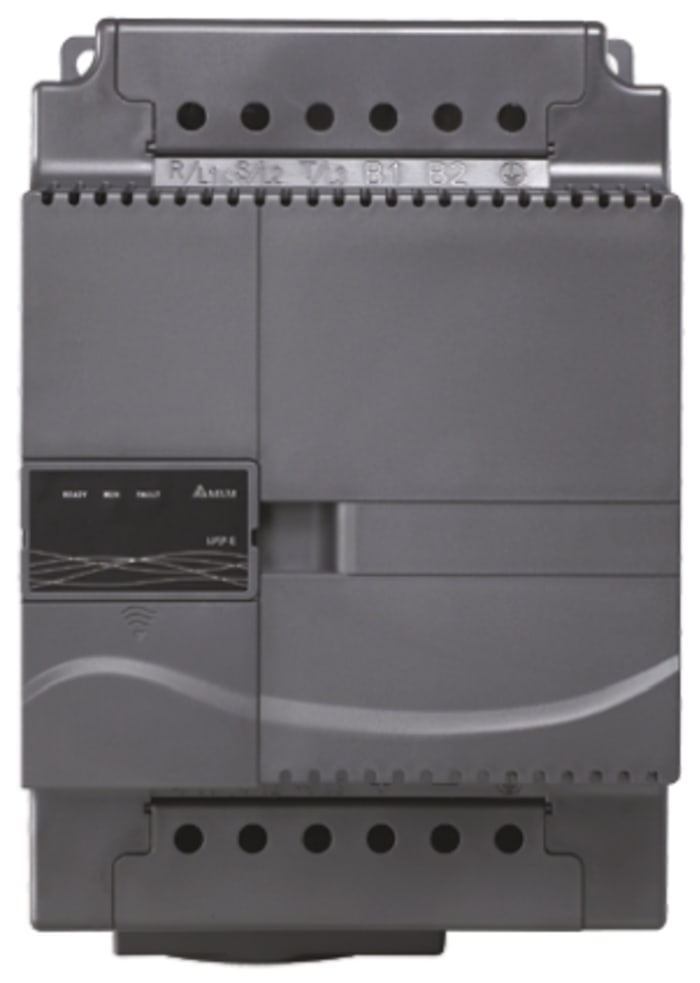

Delta Electronics Inverter Drive, 15 kW, 3 Phase, VFD-E Series 528 V 32 A
Technical Document
Specifications
Brand
Delta ElectronicsPower Rating
15kW
Product Type
Inverter Drive
Number of Phases
3
Maximum Output Current
32A
Series
VFD-E
Mount Type
Side
IP Rating
IP20
Overall Length
310mm
Output Frequency
599Hz
Minimum Supply Voltage
342V
Maximum Supply Voltage
528V
Compatible Motor Type
AC Motor
Drive Type
Variable Frequency
Minimum Operating Temperature
-10°C
Maximum Operating Temperature
40°C
Standards/Approvals
No
Overall Width
200mm
Overall Depth
190 mm
Product details
VFD-E-Series - Three Phase Input
The inverter VFD-E series is a sensorless vector AC micro drive. The VFD-E series represent a low horsepower, constant torque and IP20 rated drive.
Modular in design with flexible extension cards and a built-in PLC function, the VFD-E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.
Features and benefits
Three phase input
Output frequency 0.1 to 600 Hz
Modular & compact design
Built-in PLC function
Built-in EMI filter
RFI-switch for mains
Easy DC BUS sharing
Flexible extension
Complete Protection
Optional Fieldbus Modules (DeviceNet, Profibus, LonWorks and CANopen)
Drive does not include keypad, please order separately (Stock-no.: 785-8581)
Applications:
Smaller cranes
Washing machines
Grinding machine
Drilling machine
Wood machine
Webbing loom
Air conditioner for large buildings
Water supply system for large buildings
Delta VFD Range
