Deutsch Circular Connector, 6 Contacts, Cable Mount, Socket, Male, IP67, HD10 Series
Technical Document
Specifications
Brand
DeutschNumber Of Contacts
6
Mounting Type
Cable Mount
Plug/Socket
Socket
Contact Gender
Male
Termination Method
Crimp
IP Rating
IP67
Current Rating
25.0A
Series
HD10
Body Orientation
Straight
Mating Type
Push-Pull
Shell Size
6
Housing Material
Thermoplastic
Strain Relief
Yes
Contact Plating
Nickel
Maximum Operating Temperature
+125°C
Contact Material
Copper
Minimum Operating Temperature
-55°C
Country of Origin
Mexico
Product details

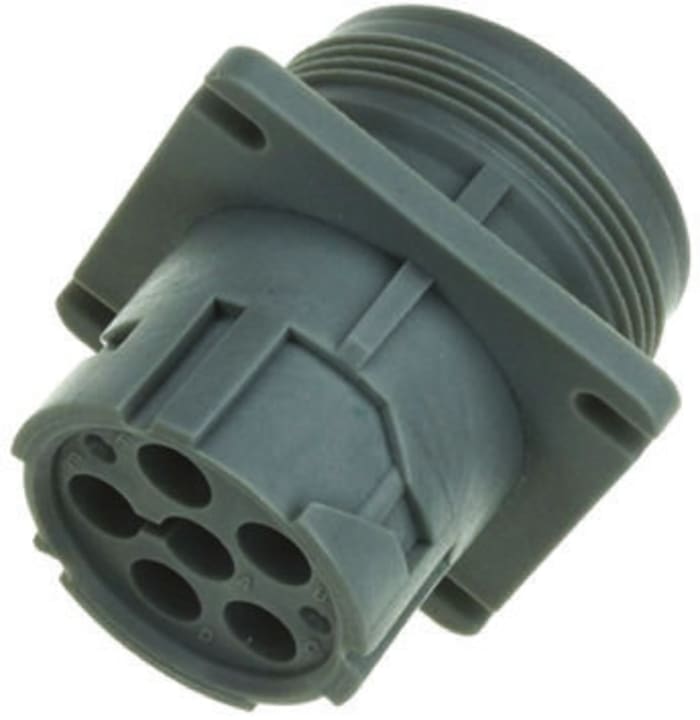

HD10 Receptacles
From Deutsch, this HD 10 Series panel mount connector offers a sturdy and versatile receptacle for heavy duty connections with corresponding HD 10 plugs. Available in 3, 6 and 9 pole contact arrangements, this HD 10 Series receptacle is very well suited to industrial applications.
Approvals
IP67
HD10 Range
A range of Heavy Duty 13Amp and 25Amp circular sealed connectors. Properly wired and mated the connection will withstand immersion under three feet of water without loss of electronic qualities or leakage. The 3, 6 and 9way 13Amp versions use Deutsch size 16 solid contacts (see for example stock no. 425-761). The 6way 25Amp version uses Deutsch size 12 solid contacts (see for example stock no. 425-828). For a suitable crimp tool, see Stock no. 425-973.
AED 54.23
AED 54.23 Each (ex VAT)
AED 56.94
AED 56.94 Each (inc. VAT)
1
AED 54.23
AED 54.23 Each (ex VAT)
AED 56.94
AED 56.94 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 24 | AED 54.23 |
| 25 - 49 | AED 52.29 |
| 50+ | AED 50.45 |
