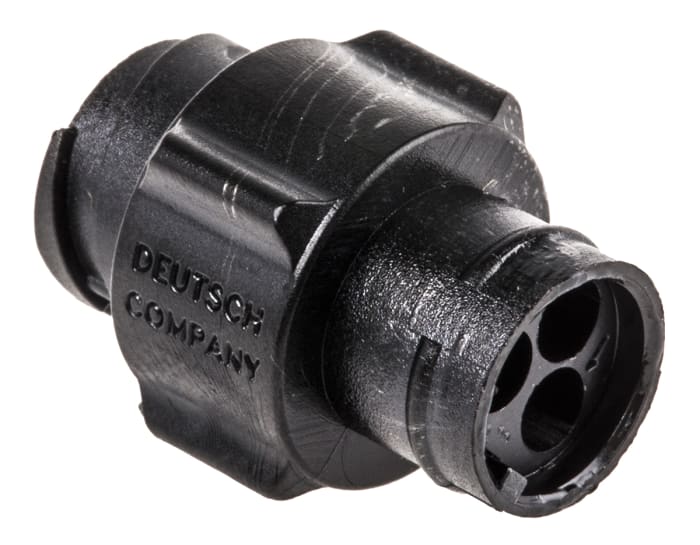

Deutsch Circular Connector, 3 Contacts, Cable, Standard Connector, Socket, Female, IP67, IMC Series

Series 100, 2, 3 & 4 Way

Available in cable plug and panel socket standard mating configuration, cable sockets may also be used to make in-line connections to the cable plug. Panel sockets permit flange or jam nut mount into a max. panel thickness of 4mm.,Daniels 8 point crimp tools and turrets are recommended to maintain the specification rating of the connectors (see Compatibility table). The Daniels AF8 (stock no. 314-7584) and MH860 (stock no. 314-8408) are high quality 8 indent crimp tools. AF8 is designed to crimp wire barrel sizes 12-20 (12-26awg wire range). MH860 is designed to crimp wire barrel sizes 16-22 (16-28awg wire range).

100 / 200 Series

Designed for industrial use where heat, dust, moisture and common oils and chemicals are prevalent, this range offers Compact multipole connection where space is at a premium. Typically, these connectors are suitable for use on test equipment, industrial sensors, medical equipment, instrumentation and control systems.

• Plugs and receptacle may be fitted with either crimp pins or sockets
• Integral cable clamp
• Bayonet locking
• Wide range of accessories

Approvals

UL recognised
