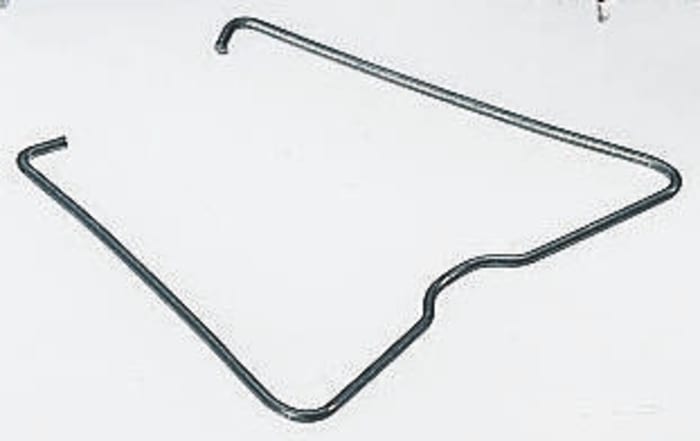

Dold Relay Retaining Clip 77.1 mm

RS Stock No.: 291-3431Brand: DoldManufacturers Part No.: ET1415.025
brand-logo
View all in Clevis Pins & Retaining Clips

Technical Document

Specifications

Brand

Dold

Product Type

Relay Retaining Clip

Length

77.1mm

Standards/Approvals

OA 5601, OA 5611, OA/OW 5669, OB 5694, OA 5612, OA 5603, OA 5622, Hf 3 DIN 74, OA 5670, OA 5672, OA 5682, OA/OW 5668, OA 5602, OA 5621

Country of Origin

Germany

Product details

PCB relay, single shot with forcibly guided contacts OA5669 (2 changeovers)

With forcibly guided contacts
Contact opening >0.5 mm throughout its service life, including malfunctions and @ 1.6 UN
Air gap and creep distance, surface winding ≥8 mm
High dielectric withstand voltage ≥4 kV
Large voltage range 0.7 → 1.6 UN
As per IEC 664/VDE 0110 (1 / 89): Rated voltage: 250 V, pollution degree:
3 Surge voltage category: III
Fluxproof
Designed as per DIN EN 50205 ZH 1 / 457 and VDE 0106, 0110, 0435, 0631, 0700, 0730, 0804

Approvals

TÜV, UL, SA, SEV

Standards

EN 60204-1 (stop functions), EN 418, prEN574, prEN 954-1
