Technical Documents
Specifications
Brand
EatonProduct Type
Logic Module
Series
easyE4
Number of Inputs
8
Output Type
Transistor
Input Type
Digital
Number of Outputs
8
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
55°C
Depth
90mm
Length
72mm
Standards/Approvals
CSA C22.2 No.61010, cULus acc. to UL 61010, EN 50178, EN 61000-6-2, EN 61000-6-3, EN 61010, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-6, IEC 61131-2
Width
58mm
Battery Backup
Yes
Display Included
No
Communication Port Type
Ethernet
Supply Voltage
24V dc
Programming Language Used
Structured Text (ST), Ladder Diagram (LD), Function Block Diagram (FBD), Easy Programming EDP
Mount Type
Wall Mount
Country of Origin
Estonia
Product Details

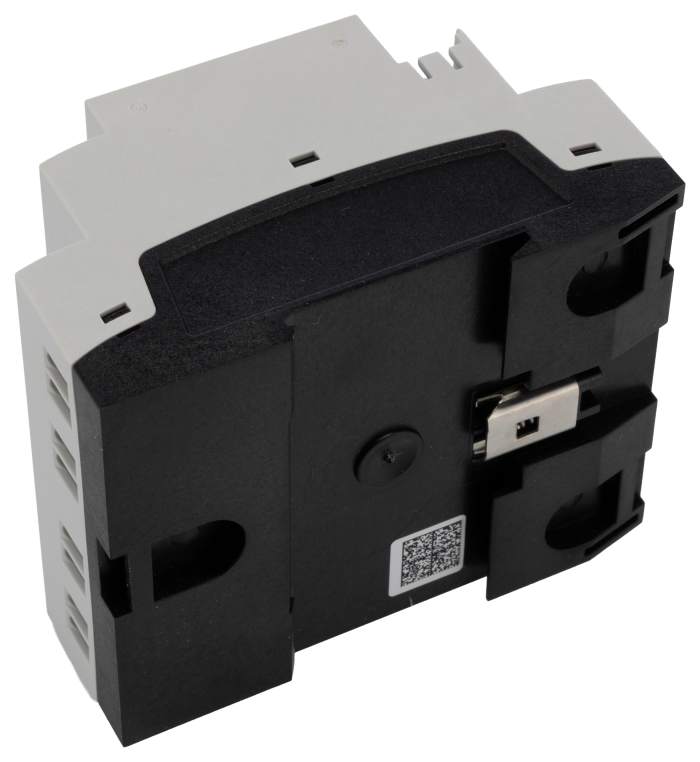

This logic module from Eaton offers a compact and efficient solution for digital input and transistor output applications. With a maximum operating temperature of +55°C and a minimum operating temperature of -25°C, it ensures reliable performance in a wide range of industrial environments.
Yes, it is expandable with the EasyE4 series of digital input/output expansions.
Yes, it has a wide operating temperature range from -25°C to +55°C.
Yes, it is CSA and cULus certified to ensure compliance with safety regulations.
Eaton formerly known as Moeller
