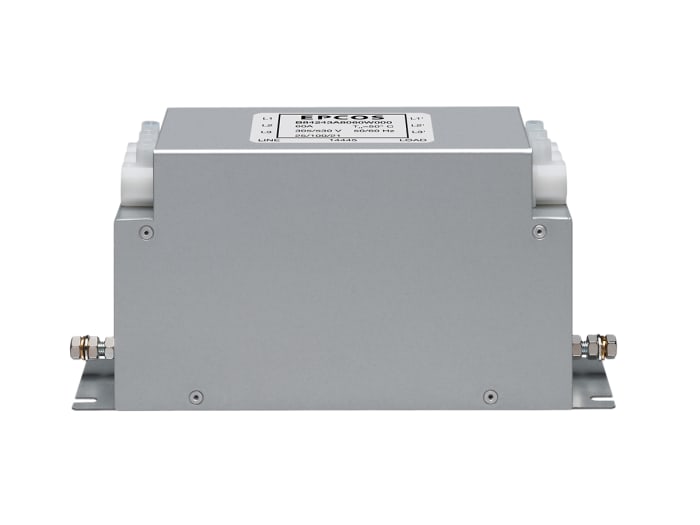

EPCOS, B84143B*R000 25A 440 V ac 50 → 60Hz, Screw Mount RFI Filter, Terminal Block 3 Phase
Technical Document
Specifications
Brand
EpcosMaximum Current Rating
25A
Maximum Voltage Rating
440 V ac
Mounting Type
Screw Mount
Termination Style
Terminal Block
Number of Phases
3
Series
B84143B*R000
Operating Frequency
50 → 60Hz
Length
91mm
Depth
216mm
Height
156mm
Dimensions
91 x 216 x 156mm
Minimum Operating Temperature
-25°C
Leakage Current
0.862 mA
Maximum Operating Temperature
+100°C
Resistance
10MΩ
Standards Met
UL 1283
Product details
B84143-Bx-R Series
Very high insertion loss (2-stage design)
Low leakage current
Complies with UL 1283, CSA 22.2 No. 8 1996
Optimised for long motor cables and operation under full load
Applications include frequency converters for motor drives e.g. lifts, pumps, traction systems, conveyor systems, air conditioning systems, wind-driven power plants and power supplies
