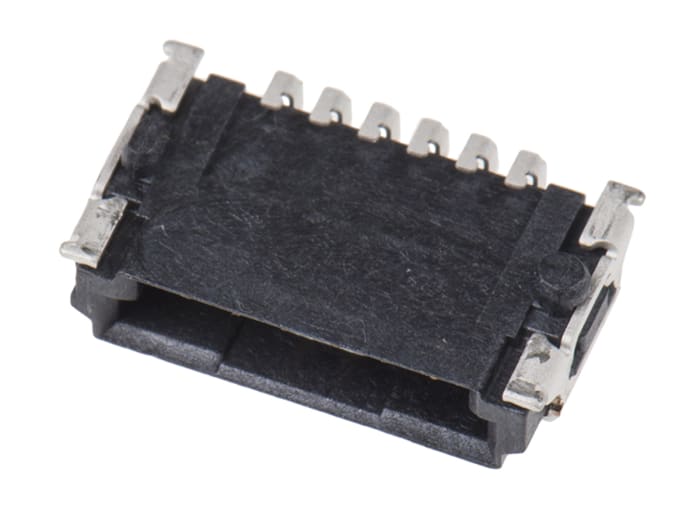

ERNI MiniBridge Series Right Angle Surface PCB Header, 6 Contact(s), 1.27 mm Pitch, 1 Row, Shrouded

90° Single Row SMT Plug

The plastic housing is able to withstand high temperatures making it suitable for lead-free reflow soldering processes.

• Pick-and-place cover for automated assembly
• Reliable retention force due to ruggedized metal clips on both sides of the plug
• Two pegs (round and oval) to aid EXACT positioning on the PCB
• Guiding element

1.27 mm ERNI Minibridge™ Cable System

Ideally suited for diverse sensor, actuator, power-supply and data applications in the fields of automotive and industrial electronics, computer technology, consumer electronics and medical device technology. Despite its very small dimensions this system offers a high current capacity of up to 4A (at 20°C, depending on the cable)

• Contact resistance <25 mΩ
• Insulation resistance >10⁴<P> </P>MΩ
• 500 mating cycles
