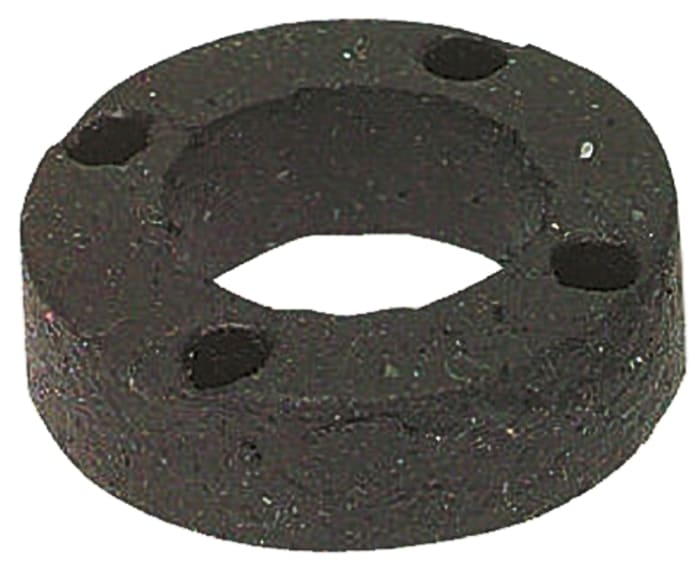

Fabreeka Anti-Vibration Mount, Ring Bush
Technical Document
Specifications
Brand
FabreekaAnti Vibration Mount Type
Ring Bush
Product Type
Anti-Vibration Mount
Bore Size
12mm
Bore Length
6.35mm
Static Load Rating
100lb
Outside Diameter
20.6mm
Foot Colour
Red
Minimum Operating Temperature
-28°C
Material
Neoprene
Maximum Operating Temperature
82°C
Mount Type
Ring
Standards/Approvals
RoHS
Compression Deflection
0.14in
Country of Origin
United States
Product details
Ring and Bush Mounts
Ring and bushing mounts are often used in office machinery, motors, pumps, air conditioning and scientific equipment, offering structural support when installed in pairs. The location of the holes in the elastomer provides low frequency isolation, cushions shock and isolates vibration.
Provides Highly Efficient Noise Reduction Caused by Structural Vibration
Suitable for Incorporation Directly into the Structural Components of Equipment
Neoprene Elastomer Resistant to Fuel, Solvents and Oil
Three Sizes for Loads Ranging from 1 to 100 lbs
Stock information temporarily unavailable.
AED 197.95
AED 9.898 Each (In a Pack of 20) (ex VAT)
AED 207.85
AED 10.393 Each (In a Pack of 20) (inc. VAT)
20
AED 197.95
AED 9.898 Each (In a Pack of 20) (ex VAT)
AED 207.85
AED 10.393 Each (In a Pack of 20) (inc. VAT)
Stock information temporarily unavailable.
20
| Quantity | Unit price | Per Pack |
|---|---|---|
| 20 - 80 | AED 9.898 | AED 197.95 |
| 100 - 180 | AED 9.523 | AED 190.46 |
| 200 - 480 | AED 9.309 | AED 186.18 |
| 500+ | AED 9.095 | AED 181.90 |
Technical Document
Specifications
Brand
FabreekaAnti Vibration Mount Type
Ring Bush
Product Type
Anti-Vibration Mount
Bore Size
12mm
Bore Length
6.35mm
Static Load Rating
100lb
Outside Diameter
20.6mm
Foot Colour
Red
Minimum Operating Temperature
-28°C
Material
Neoprene
Maximum Operating Temperature
82°C
Mount Type
Ring
Standards/Approvals
RoHS
Compression Deflection
0.14in
Country of Origin
United States
Product details
Ring and Bush Mounts
Ring and bushing mounts are often used in office machinery, motors, pumps, air conditioning and scientific equipment, offering structural support when installed in pairs. The location of the holes in the elastomer provides low frequency isolation, cushions shock and isolates vibration.
Provides Highly Efficient Noise Reduction Caused by Structural Vibration
Suitable for Incorporation Directly into the Structural Components of Equipment
Neoprene Elastomer Resistant to Fuel, Solvents and Oil
Three Sizes for Loads Ranging from 1 to 100 lbs
