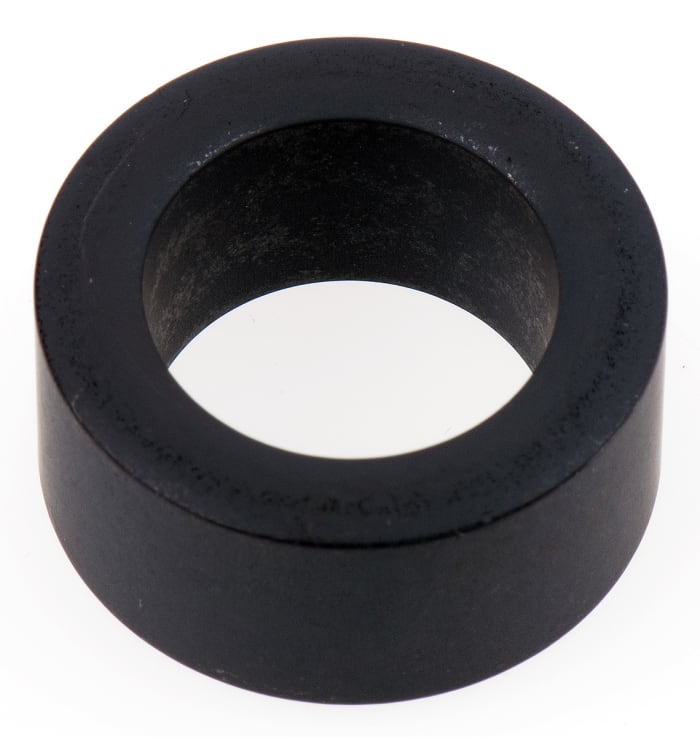

Fair-Rite Ferrite Ring Toroid Core 13.8 mm, For: Broadband Transformer 19 mm ID 29 mm OD

Name: Fair-Rite Ferrite Ring Toroid Core 13.8 mm, For: Broadband Transformer 19 mm ID 29 mm OD
Brand: Fair-Rite
SKU: 4674295
Availability: LimitedAvailability

RS Stock No.: 467-4295Brand: Fair-RiteManufacturers Part No.: 5961001201

View all in Ferrite Rings

Technical Documents

Specifications

Brand

Fair-Rite

Product Type

Ferrite Ring

Sub Type

Toroid Core

Minimum Frequency

10kHz

Application

Broadband Transformer

Material

61 Material

Height

13.8mm

Inside Diameter

19mm

Outside Diameter

29mm

Standards/Approvals

RoHS

Country of Origin

China

Product Details

NiZn Cores

Only recommended for common mode inductor applications
Ring configuration optimises ferrite material properties
Cores are supplied burnished to remove sharp edges
A_L values tested at 10kHz and <10 gauss

Notes

Line drawing dimensions: A=diameter; B=internal diameter; C=height
