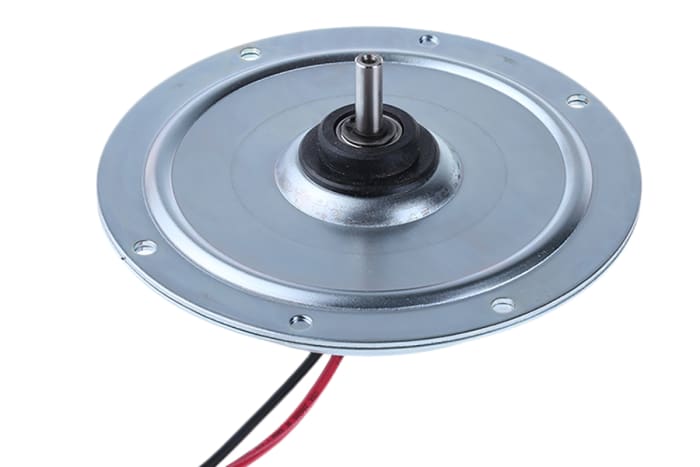

Flightlink Controls Brushed DC Motor, 94 W, 22.5V dc, 30 Ncm, 3000rpm, 6 mm Shaft Diameter
Technical Document
Specifications
Brand
Flightlink ControlsProduct Type
DC Motor
Supply Voltage
22.5V dc
Sub Type
Brushed
Power Rating
94W
Output Speed
3000rpm
Shaft Diameter
6mm
Maximum Output Torque
30Ncm
Mount Type
Screw
Current Rating
6.9A
Material
Steel
Shaft Length
17.6mm
Length
37.7mm
Depth
56.5mm
Standards/Approvals
RoHS
Width
56.5mm
Series
GPN9
Country of Origin
United Kingdom
Product details
32 W → 243 W
Flat design
Long life when operating with highest nominal values
High performance-to-weight ratio
Very smooth operation at low speeds
Good acceleration from idle state when fully loaded
Low inductance
Minimal brush sparking
Minimal radio interference
Various magnet materials: M type with ferrite magnets; N type with "rare earth magnets"
The N type delivers up to 2.5 times the performance and 3 times the torque of an M-type motor of the same size
These powerful pancake motors offer numerous additional advantages compared with conventional permanent magnet DC motors:
