Technical Documents
Specifications
Brand
FTDI ChipProduct Type
Communication & Wireless Development Tool
Kit Classification
Development Board
Technology
CMOS
For Use With
Standard 0.6 in wide 24 pin DIP socket
Featured Device
FT232RL
Kit Name
UM232R USB-Serial UART Development Module
Maximum Frequency
48MHz
Interface Type
USB, UART
Standards/Approvals
USB 2.0 Full Speed compatible, European Union directive 2002/95/EC, Pb-free (RoHS compliant)
Product Details

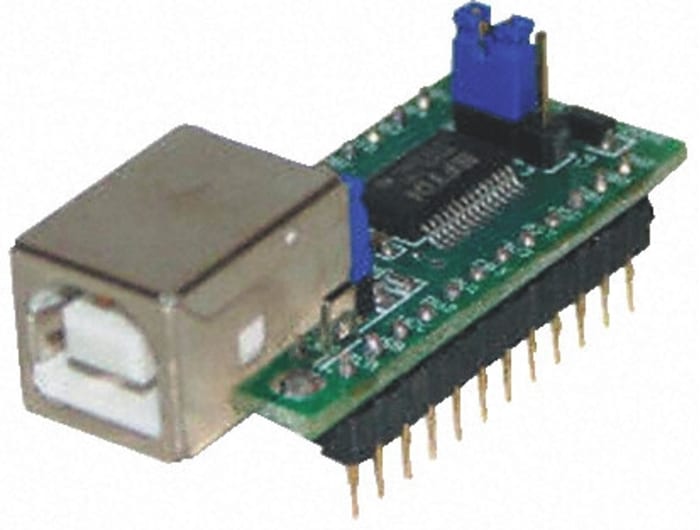

The FTDI chip USB to UART development board is a development module that uses FTDIs FT232RL, one of FTDIs range of USB to UART interface integrated circuit devices. The FT232RL is a USB to serial UART interface with optional clock generator output and the FTDI Chip-ID security dongle feature. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be detached and used to drive a microcontroller or external logic. A unique number is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle that can be used to protect customer application software from being copied. The circuit is supplied on a PCB which is designed to plug into a standard 0.6in wide 24-pin DIP socket.
Stock information temporarily unavailable.
AED 106.79
AED 106.79 Each (ex VAT)
AED 112.13
AED 112.13 Each (inc. VAT)
1
AED 106.79
AED 106.79 Each (ex VAT)
AED 112.13
AED 112.13 Each (inc. VAT)
Stock information temporarily unavailable.
1
