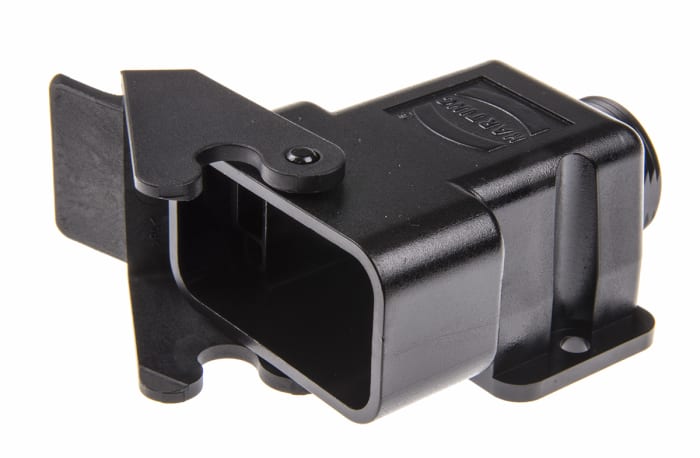

HARTING, Dust Protection Cover Connector Housing Surface Mount, 4+2E Screw, 600 V 40A
Technical Document
Specifications
Brand
HartingPole Format
4+2E
Product Type
Connector Housing
Current
40A
Voltage
600 V
Connector Gender
Female
Mount Type
Surface Mount
Contact Material
Thermoplastic
Housing Material
Polycarbonate
Minimum Operating Temperature
-40°C
Cable Diameter
26.7mm
Termination Type
Screw
Contact Gender
Female
Maximum Operating Temperature
125°C
Standards/Approvals
No
Series
Dust Protection Cover
Country of Origin
Germany
Product details
Han Q socket and covers
Han Q flush-mounted plastic socket for 4 + 2 poles + PE module, with PG16 cable input.
Han Q 8/0 covers with PG16 or M25 cable input.
Han Q sealing cap with bracket.
Harting Han® Modular
The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 80.89
AED 80.89 Each (ex VAT)
AED 84.93
AED 84.93 Each (inc. VAT)
1
AED 80.89
AED 80.89 Each (ex VAT)
AED 84.93
AED 84.93 Each (inc. VAT)
Stock information temporarily unavailable.
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 80.89 |
| 5+ | AED 79.34 |
