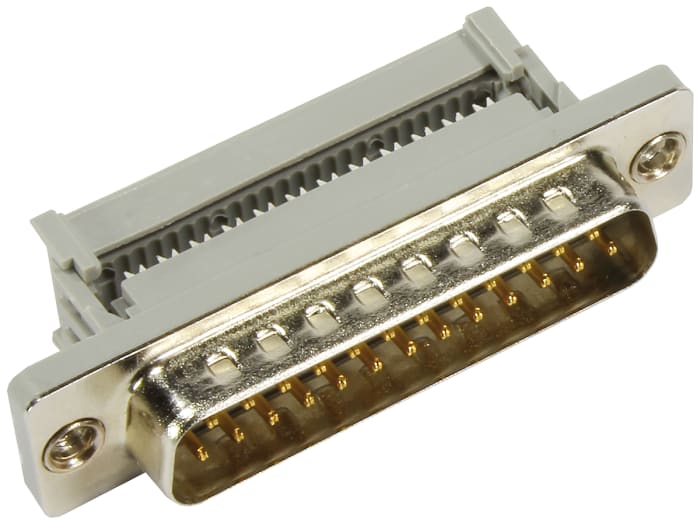

HARTING D-Sub 25 Way Cable Mount D-sub Connector Plug, 2.77mm Pitch
Technical Document
Specifications
Brand
HartingNumber Of Contacts
25
Gender
Male
Body Orientation
Straight
Mounting Type
Cable Mount
Pitch
2.77mm
Termination Method
IDC
Current Rating
2.0A
Housing Material
Glass Filled Thermoplastic
Voltage Rating
1.0 kV
Length
53.05mm
Width
12.55mm
Depth
17.4mm
Dimensions
53.05 x 12.55 x 17.4mm
Series
D-sub
Contact Material
Copper Alloy
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+125°C
Country of Origin
China
Product details
Harting 25 way D-Sub Miniature Plugs and Sockets - IDC Termination
From Harting, a range of 25 way IDC (Insulation displacement termination) D-sub miniature connectors with straight stamped male or female contacts. The plugs and sockets have copper alloy contacts housed in a robust metal shell. Secured in the panel with a fixing flange with feed through 3.1 mm hole. The D-sub miniature connectors in this series have performance level 3.
Features and Benefits
• Robust metal shell
• 2A rated current
• IDC (Insulation displacement termination)
• Performance level 3
• Stamped contacts
D-Sub Connectors - Harting
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
Please check again later.
AED 72.90
Each (ex VAT)
AED 76.54
Each (inc. VAT)
1
AED 72.90
Each (ex VAT)
AED 76.54
Each (inc. VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 9 | AED 72.90 |
| 10 - 24 | AED 70.00 |
| 25 - 49 | AED 64.00 |
| 50 - 99 | AED 61.75 |
| 100+ | AED 60.95 |
