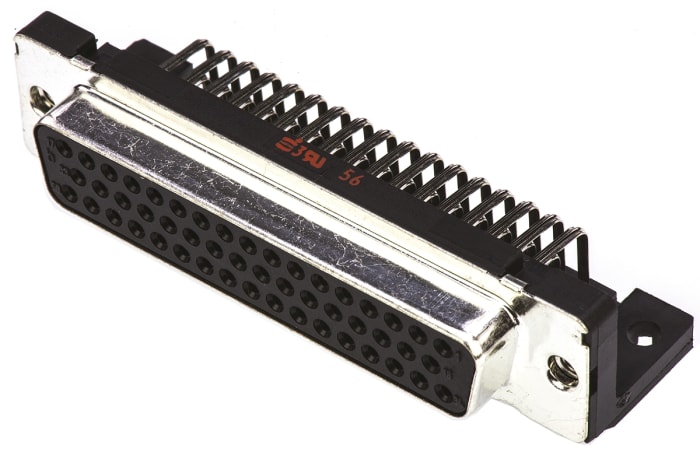

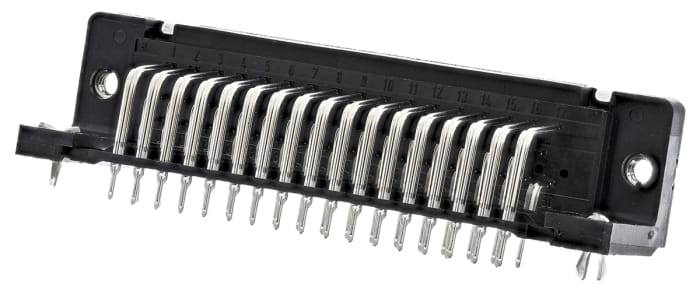

HARTING D-Sub Standard 50 Way Right Angle Through Hole D-sub Connector Socket, 2.76mm Pitch, with 4-40 UNC Threaded
Technical Document
Specifications
Brand
HartingNumber Of Contacts
50
Gender
Female
Body Orientation
Right Angle
Mounting Type
Through Hole
Pitch
2.76mm
Termination Method
Solder
Mounting Hardware
4-40 UNC Threaded Inserts, Boardlocks
Current Rating
6.5A
Housing Material
Steel
Length
67.0mm
Width
17.5mm
Depth
15.4mm
Contact Material
Copper Alloy
Series
D-Sub Standard
Dimensions
67 x 17.5 x 15.4mm
Series Number
966
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
+125°C
Product details
Harting 2.54mm DIN 41652 Standard D-Sub Connectors, Stamped Pins, Board Locks
A concise range of stamped pin D-sub connectors, ideal for cable to board applications such as communication and data interfacing. These durable D connectors have a good mating cycle and feature plated steel housings along with copper alloy contacts.
Standard subminiature D connectors
Stamped contacts
Performance level 2
Metal shell
4-40 UNC
Standards
IEC 60 807
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 132.62
AED 132.62 Each (ex VAT)
AED 139.25
AED 139.25 Each (inc. VAT)
Standard
1
AED 132.62
AED 132.62 Each (ex VAT)
AED 139.25
AED 139.25 Each (inc. VAT)
Standard
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 9 | AED 132.62 |
| 10 - 24 | AED 120.59 |
| 25+ | AED 117.44 |
