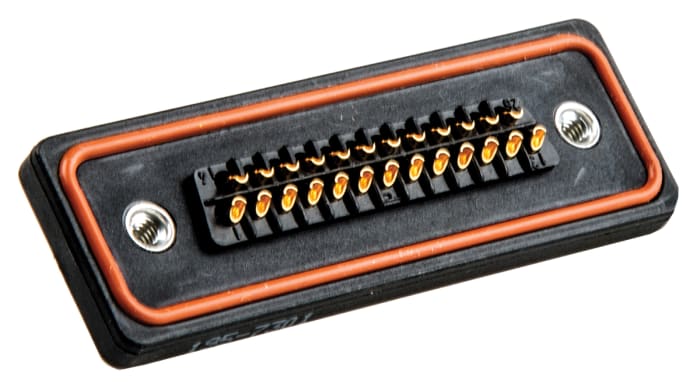

HARTING 25 Way Panel Mount D-sub Connector Plug
Technical Document
Specifications
Brand
HartingNumber Of Contacts
25
Gender
Male
Body Orientation
Straight
Mounting Type
Panel Mount
D Connector Type
Waterproof D-Sub
Termination Method
Solder
D-Sub Shell Size
B
Current Rating
5.0A
Housing Material
Brass
Length
62.0mm
Width
21.0mm
Depth
14.3mm
Contact Material
Copper Alloy
Dimensions
62 x 21 x 14.3mm
Contact Plating
Gold
Minimum Operating Temperature
-25.0°C
Maximum Operating Temperature
+70°C
Product details
Sub-D sealed connectors for soldering onto wires
Sub-D sealed connectors, class 3, contacts made from copper alloy.
With rear plastic mounting plate.
Insert 4-40 UNC.
Metal casing.
Protection index: IP67.
Approvals
MIL-C-24308, DIN 41652 et
CECC 75.01-802.
Standards
MIL-C-24308, DIN 41652 and
CECC 75.01-802.
Waterproof (IP67) 'D'
Suitable for military, industrial or commercial applications and computer interfacing etc.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 237.14
AED 237.14 Each (ex VAT)
AED 249.00
AED 249.00 Each (inc. VAT)
1
AED 237.14
AED 237.14 Each (ex VAT)
AED 249.00
AED 249.00 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price |
|---|---|
| 1 - 49 | AED 237.14 |
| 50 - 99 | AED 230.79 |
| 100 - 249 | AED 224.60 |
| 250+ | AED 218.87 |
