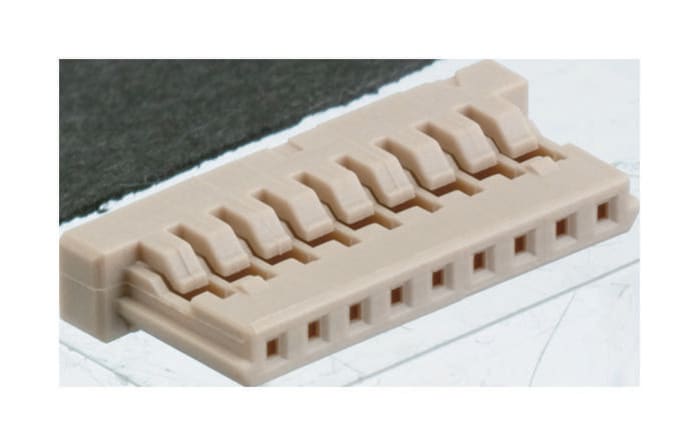

Hirose, DF14 Female Connector Housing, 1.25mm Pitch, 7 Way, 1 Row
Technical Document
Specifications
Brand
HiroseNumber Of Contacts
7
Number Of Rows
1
Pitch
1.25mm
Gender
Female
Mounting Type
Cable Mount
Series
DF14
For Use With
DF14 Series
Body Orientation
Straight
Length
10.7mm
Width
2.3mm
Housing Material
PA
Country of Origin
Japan
Product details
Crimping Socket
1.25 mm pitch super low profile crimping connector
Beige Crimping Socket, UL94V-0
Super low profile (Board mounting height: 2.5 mm)
Correspond to automatic mounting
Four wall type without friction to board by socket
1.25mm Super Low profile Crimping Connector - Hirose DF14
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 70.88
AED 1.418 Each (In a Bag of 50) (ex VAT)
AED 74.42
AED 1.489 Each (In a Bag of 50) (inc. VAT)
Standard
50
AED 70.88
AED 1.418 Each (In a Bag of 50) (ex VAT)
AED 74.42
AED 1.489 Each (In a Bag of 50) (inc. VAT)
Standard
50
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price | Per Bag |
|---|---|---|
| 50 - 450 | AED 1.418 | AED 70.88 |
| 500 - 1450 | AED 1.26 | AED 63.00 |
| 1500 - 3700 | AED 1.05 | AED 52.50 |
| 3750 - 7450 | AED 0.84 | AED 42.00 |
| 7500+ | AED 0.788 | AED 39.38 |
