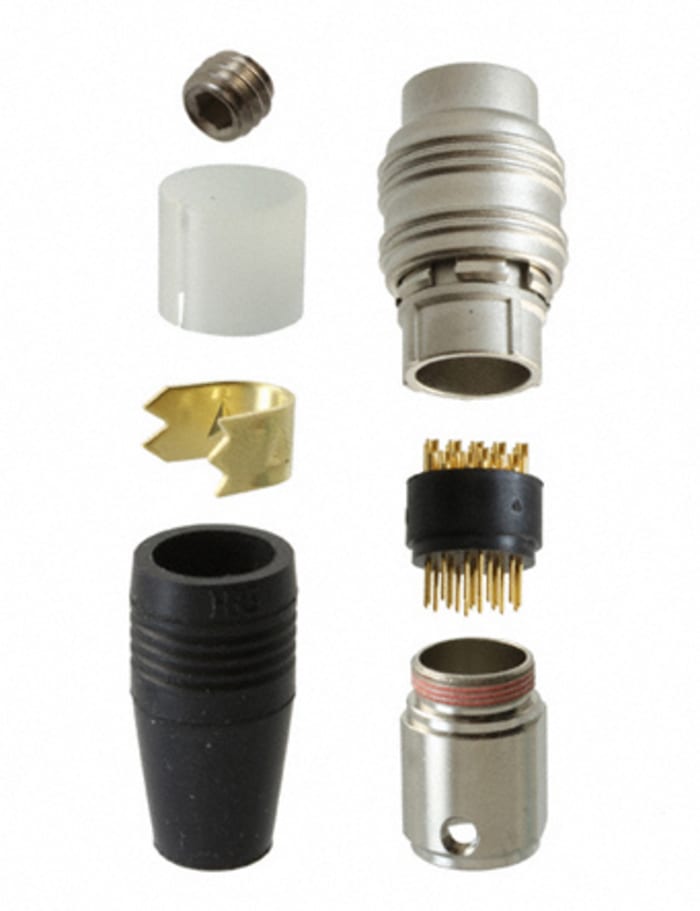

Hirose Circular Connector, 20 Contacts, Cable Mount, Micro Connector, Plug, Male, HR25 Series
Technical Document
Specifications
Brand
HiroseNumber Of Contacts
20
Mounting Type
Cable Mount
Connector Size
Micro
Plug/Socket
Plug
Contact Gender
Male
Termination Method
Solder
Current Rating
1.0A
Body Orientation
Straight
Series
HR25
Voltage Rating
30.0 V , 42.0 V
Shell Size
9
Mating Type
Push-Pull
Housing Material
Zinc
Contact Plating
Gold
Maximum Operating Temperature
+85°C
Contact Material
Bronze
Minimum Operating Temperature
-25°C
Country of Origin
China
Product details
Plug
Miniature Push-Pull Circular Connectors
Small size – high density
Simple push-in/ pull out mating / unmating
Several mounting number of positions, styles and terminations
Metal shells
RoHS compliant
Cable outer Ø 5 mm (size 4, 6, 8) / 7mm (size 9)
Miniature Push-Pull - HR25A
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 270.27
AED 270.27 Each (ex VAT)
AED 283.78
AED 283.78 Each (inc. VAT)
1
AED 270.27
AED 270.27 Each (ex VAT)
AED 283.78
AED 283.78 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 270.27 |
| 5 - 9 | AED 243.44 |
| 10 - 24 | AED 218.98 |
| 25 - 49 | AED 197.14 |
| 50+ | AED 187.42 |
