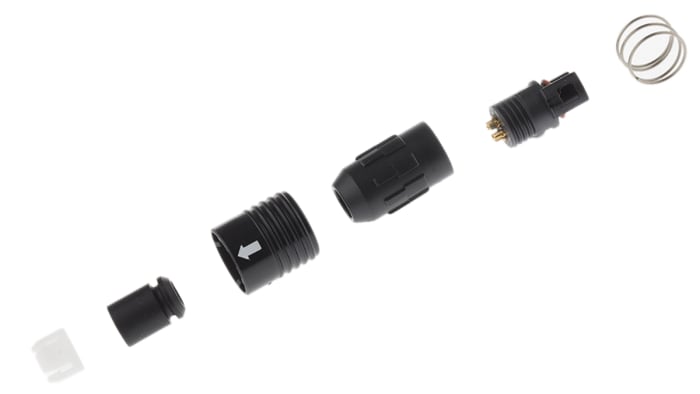

Hirose, HR30 Cable Mount Miniature Connector Socket, 6 Way, 2A, IP67, IP68
Technical Document
Specifications
Brand
HiroseNumber Of Contacts
6
Gender
Female
Mounting Type
Cable Mount
Body Orientation
Straight
Contact Plating
Gold
Termination Method
Solder
Current Rating
2A
Voltage Rating
100 V ac
Contact Material
Brass, Phosphor Bronze
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+85°C
Product details
Miniature Waterproof Plastic Connectors
The Hirose HR30 lightweight waterproof connectors have an IP67 rating which offers, when mated, a complete protection against water penetration when submerged in 1 metre of water for 30 minutes. All variations are manufactured with glass reinforced thermoplastic compounds and non corrosive components. Connectors with solder termination have solder pot inner diameters as follows:- 3 way (1.1 mm), 6-way (0.8 mm), 12-way (0.6 mm).
Push pull lock mechanism
Small and lightweight
Polarised to protect the contacts from misalignment
Built in cable strain relief
1000 mating/release cycles
Hirose Miniature Waterproof Plastic Connectors - HR30 Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
AED 29.19
AED 29.19 Each (ex VAT)
AED 30.65
AED 30.65 Each (inc. VAT)
1
AED 29.19
AED 29.19 Each (ex VAT)
AED 30.65
AED 30.65 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 9 | AED 29.19 |
| 10+ | AED 26.36 |
