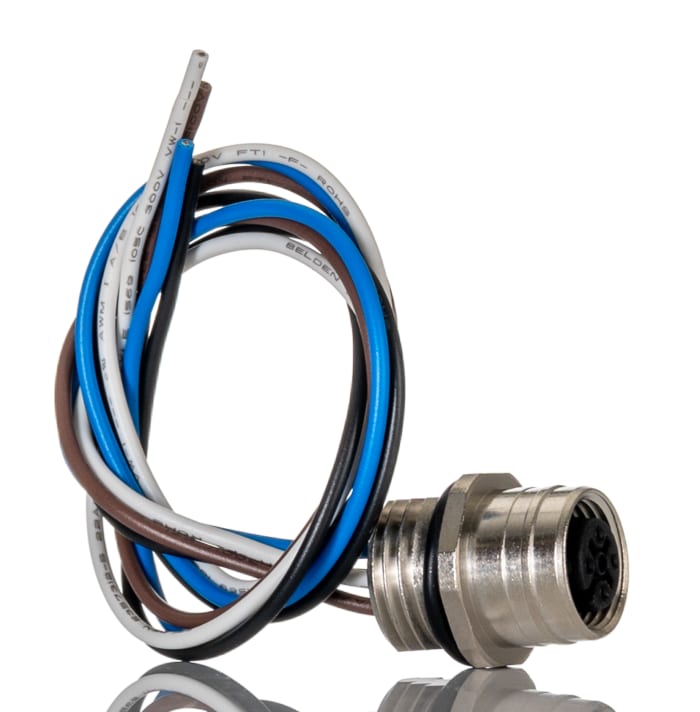

Hirschmann Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 200mm
Technical Document
Specifications
Brand
HirschmannSeries
G Series
Cross Sectional Area
0.34 mm²
Sheath Material
Polyvinyl Chloride PVC
Sheath Colour
Black
Length
200mm
Connector 1
M12
Connector 1 Orientation
Straight
Connector 1 Number of Contacts
4
Connector 1 Gender
Female
Connector 2
Unterminated
Coding
A
Mounting Type
Panel Mount
Shielded/Unshielded
Unshielded
Armoured
No
Current Rating
4 A
Voltage Rating
230 V
IP Rating
IP65, IP67
Standards Met
RoHS Compliant
Maximum Operating Temperature
-25°C
Outer Diameter
1.75mm
American Wire Gauge
22 AWG
Operating Temperature Range
-25 → +90 °C
Minimum Operating Temperature
+90°C
Insulation material
PVC
Conductor Material
Copper
Connector 1 Housing Gender
Female
Cable Shape
Round
Product details
M12 Chassis Plug & Socket
Front panel mounting plugs and sockets with a PG9 thread to enable the coupling of jumper cables and single ended leads to appliances.
Ways 4
Cable Type PVC
Hirschmann - M8 og M12
AED 96.44
AED 96.44 Each (ex VAT)
AED 101.26
AED 101.26 Each (inc. VAT)
1
AED 96.44
AED 96.44 Each (ex VAT)
AED 101.26
AED 101.26 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 96.44 |
| 5 - 9 | AED 93.34 |
| 10 - 14 | AED 91.35 |
| 15 - 24 | AED 88.62 |
| 25+ | AED 85.31 |
