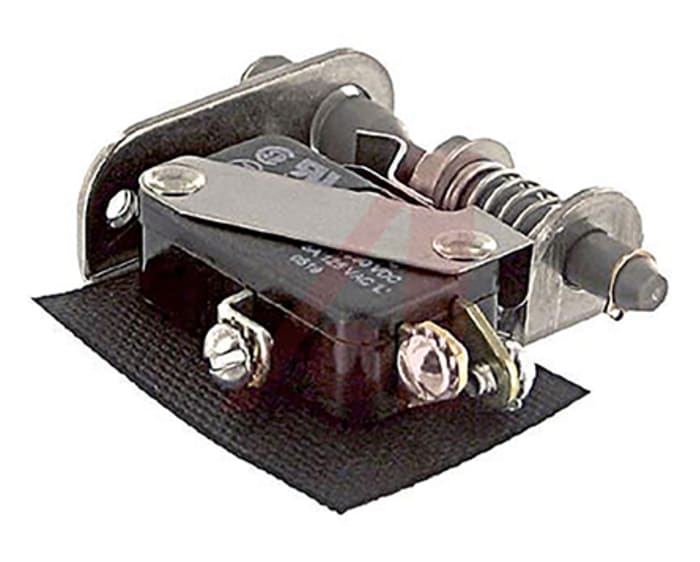

Honeywell Rod Door Micro Switch, Screw Terminal, 15 A @ 250 V ac, SP-CO

RS Stock No.: 820-7401Brand: HoneywellManufacturers Part No.: 13AC1
brand-logo
View all in Micro Switches

Technical Document

Specifications

Brand

Honeywell

Actuator Type

Rod

Terminal Type

Screw

Contact Current Rating

15 A @ 250 V ac

Contact Configuration

SP-CO

Minimum Operating Temperature

-18°C

Maximum Operating Temperature

+149°C

Contact Material

Silver

Case Material

Stainless Steel

Voltage Rating

250V ac

Switch Operation

Momentary

Operating Temperature Range

-18 → +149°C

Standards Met

CSA, UL

Country of Origin

Mexico

Product details

Honeywell AC Series Door Switches

The Micro Switch™ AC series door interlock switches have been designed for simple or precision on/off applications. They enable circuit testing with POWER ON by manually pulling a rod actuator to the maintained-ON position. Closing the door resets the switch.

Potential Applications:
Appliances
Vending machines
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment

Features:
Automatically cuts power when service door or drawer is opened
Choice of momentary, maintained or pull-to-cheat actuation
Versatile mounting bracket for side or end mounting
Current rating ranges from 5 A to 25 A
Available with one or two SPDT switches
Choice of termination

You may be interested in
Stock information temporarily unavailable.

AED 714.26

AED 714.26 Each (ex VAT)

AED 749.97

AED 749.97 Each (inc. VAT)

Honeywell Rod Door Micro Switch, Screw Terminal, 15 A @ 250 V ac, SP-CO

1

Available in multiples of 1
1AED 714.26
2AED 1,428.52
3AED 2,142.79
4AED 2,857.05
5AED 3,571.31
6AED 4,285.58
7AED 4,999.84
8AED 5,714.10
9AED 6,428.36
10AED 6,607.12
11AED 7,267.84
12AED 7,928.55
13AED 8,589.26
14AED 9,249.98
15AED 9,910.69

AED 714.26

AED 714.26 Each (ex VAT)

AED 749.97

AED 749.97 Each (inc. VAT)

Honeywell Rod Door Micro Switch, Screw Terminal, 15 A @ 250 V ac, SP-CO
Stock information temporarily unavailable.

1

Available in multiples of 1
1AED 714.26
2AED 1,428.52
3AED 2,142.79
4AED 2,857.05
5AED 3,571.31
6AED 4,285.58
7AED 4,999.84
8AED 5,714.10
9AED 6,428.36
10AED 6,607.12
11AED 7,267.84
12AED 7,928.55
13AED 8,589.26
14AED 9,249.98
15AED 9,910.69

Stock information temporarily unavailable.

Please check again later.

QuantityUnit price
1 - 9AED 714.26
10 - 49AED 660.71
50 - 99AED 636.40
100+AED 602.91
You may be interested in

Technical Document

Specifications

Brand

Honeywell

Actuator Type

Rod

Terminal Type

Screw

Contact Current Rating

15 A @ 250 V ac

Contact Configuration

SP-CO

Minimum Operating Temperature

-18°C

Maximum Operating Temperature

+149°C

Contact Material

Silver

Case Material

Stainless Steel

Voltage Rating

250V ac

Switch Operation

Momentary

Operating Temperature Range

-18 → +149°C

Standards Met

CSA, UL

Country of Origin

Mexico

Product details

Honeywell AC Series Door Switches

The Micro Switch™ AC series door interlock switches have been designed for simple or precision on/off applications. They enable circuit testing with POWER ON by manually pulling a rod actuator to the maintained-ON position. Closing the door resets the switch.

Potential Applications:
Appliances
Vending machines
Office equipment
Computer/business equipment
Test instruments
Medical/dental equipment
Communications equipment
HVAC equipment

Features:
Automatically cuts power when service door or drawer is opened
Choice of momentary, maintained or pull-to-cheat actuation
Versatile mounting bracket for side or end mounting
Current rating ranges from 5 A to 25 A
Available with one or two SPDT switches
Choice of termination
