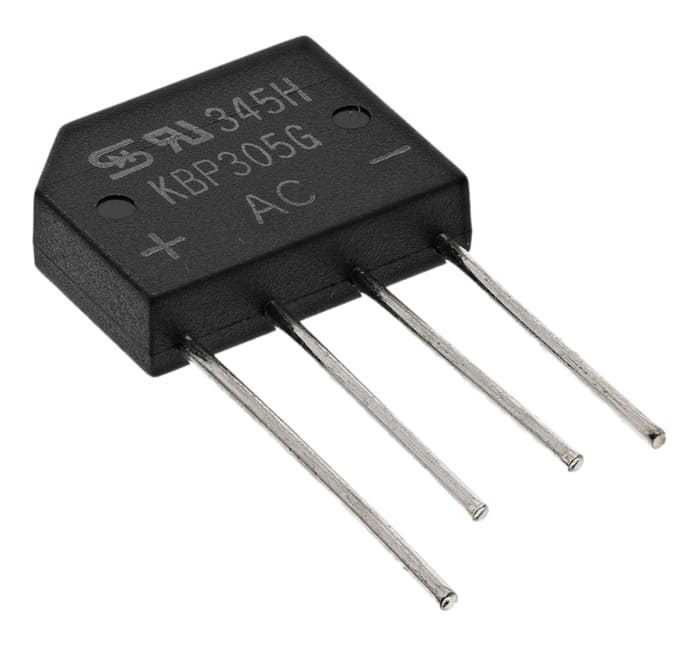

HY Electronic Corp Bridge Rectifier, 600 V 80 A, 4-Pin Single
Technical Document
Specifications
Brand
HY Electronic CorpProduct Type
Bridge Rectifier
Peak Reverse Repetitive Voltage Vrrm
600V
Mount Type
Through Hole
Package Type
KBP
Number of Phases
1
Pin Count
4
Configuration
Single
Maximum Operating Temperature
150°C
Forward Current If
3A
Minimum Operating Temperature
-55°C
Peak Non-Repetitive Forward Surge Current Ifsm
80A
Peak Forward Voltage Vf
1.1V
Peak Reverse Current Ir
10μA
Height
11.68mm
Length
15.24mm
Standards/Approvals
No
Series
KBP3
Automotive Standard
No
Country of Origin
China
Product details
Bridge Rectifier - KBP Series
HY Electronic (Cayman) Limited KBP Series bridge rectifiers are glass passivated rectifiers. The devices have a forward current of 2A or 3A in 600/1000 VRRM. They can be mounted in any position on the board and have a UL flammability classification. They are ideal for PCBs and transform AC into DC.
UL classification 94V-0
Surge overload: -80 A
Bridge Rectifiers - HY Electronic (Cayman) Limited
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 58.85
AED 1.177 Each (In a Pack of 50) (ex VAT)
AED 61.79
AED 1.236 Each (In a Pack of 50) (inc. VAT)
Standard
50
AED 58.85
AED 1.177 Each (In a Pack of 50) (ex VAT)
AED 61.79
AED 1.236 Each (In a Pack of 50) (inc. VAT)
Stock information temporarily unavailable.
Standard
50
| Quantity | Unit price | Per Pack |
|---|---|---|
| 50 - 100 | AED 1.177 | AED 58.85 |
| 150+ | AED 1.07 | AED 53.50 |
