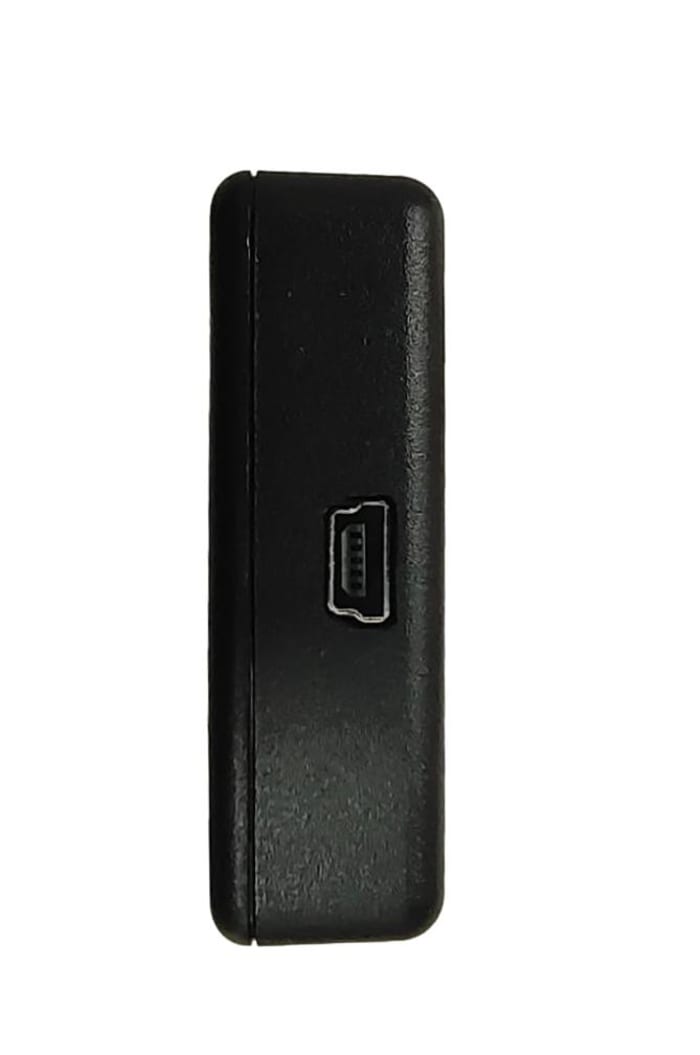

IKALOGIC SQ200 Logic Analyzer & Function Generator, 10 kHz Min, 200 MHz Max FM Modulation Variable Sweep

Name: IKALOGIC SQ200 Logic Analyzer & Function Generator, 10 kHz Min, 200 MHz Max FM Modulation Variable Sweep
Brand: IKALOGIC
SKU: 1886968
Availability: LimitedAvailability

RS Stock No.: 188-6968Brand: IKALOGICManufacturers Part No.: SQ200

View all in Function Generators

Technical Documents

Specifications

Brand

IKALOGIC

Maximum Frequency Range Sinewave

200MHz

Product Type

Logic Analyzer & Function Generator

Number of Channels

Minimum Frequency Range Sinewave

10kHz

Variable Sweep

Yes

FM Modulation

Yes

Minimum Frequency Range Square Pulse/Arbitrary Waveform

10kHz

Time Base Accuracy

50 ppm

Digital Frequency

Yes

Height

15mm

Length

50mm

Weight

80g

Standards/Approvals

IEC/EN

Width

50mm

TTL Output Level

Minimum Operating Temperature

-10°C

Model Number

SQ200

Maximum Operating Temperature

40°C

CMOS Output Level

1.6 to 5 V

Interface Type

USB

Input Impedance

100kΩ

Internal Linear and Log Sweep

Yes

Country of Origin

France

Product Details

Get quick insight into your serial communication application
Software lets you view decoded signals in many different levels of abstractions (Packets or detailed bits and bytes)
Device performance do not depend on USB connection bandwidth
Software running on Windows, macOS and Linux
Software is intuitive and very easy to use
Generate test patterns to stimulate a system without any other equipment
applications
Embedded systems
Firmware development and debugging
Educational work
Serial protocols analysis, like I2C, SPI, UART or 1-Wire (non exhaustive list)
Reverse engineering
