Technical Documents
Specifications
Brand
InvenSenseSensor Type
Motion Sensor Module
Product Type
Accelerometer & Gyroscope
Number of Axis
6
Technology
Digital
Mount Type
Surface
Interface Type
SPI, I2C
Maximum Frequency Response
8MHz
Minimum Frequency Response
400kHz
Minimum Supply Voltage
1.71V
Package Type
LGA
Maximum Supply Voltage
3.6V
Minimum Operating Temperature
-40°C
Pin Count
16
Maximum Operating Temperature
85°C
Height
750μm
Length
3mm
Standards/Approvals
RoHS and Green
Width
3mm
Series
IAM-20680
Supply Current
3mA
Automotive Standard
No
Response Time
35ms
Country of Origin
Taiwan, Province Of China

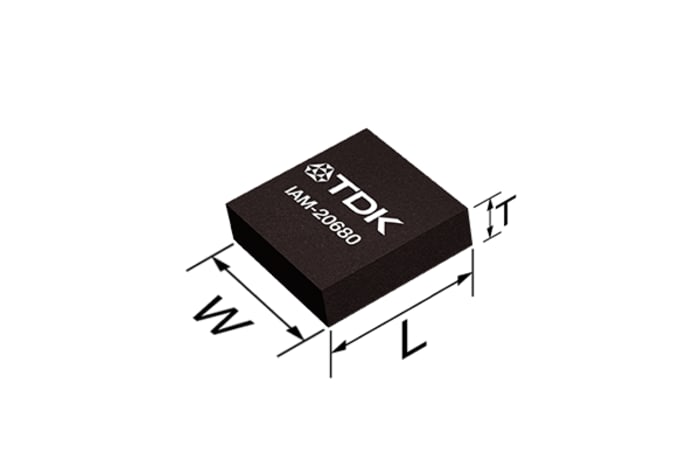

Product Details
The InvenSense IAM series is a 6-axis motion tracking device for automotive applications that combines a 3-axis gyroscope and a 3-axis accelerometer. The gyroscope has a programmable full-scale range of ±250 dps, ±500 dps, ±1000 dps, and ±2000 dps. The accelerometer has a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Stock information temporarily unavailable.
AED 92.18
AED 92.18 Each (ex VAT)
AED 96.79
AED 96.79 Each (inc. VAT)
Standard
1
AED 92.18
AED 92.18 Each (ex VAT)
AED 96.79
AED 96.79 Each (inc. VAT)
Stock information temporarily unavailable.
Standard
1
| Quantity | Unit price |
|---|---|
| 1 - 4 | AED 92.18 |
| 5 - 9 | AED 84.10 |
| 10 - 24 | AED 81.11 |
| 25 - 49 | AED 76.29 |
| 50+ | AED 72.28 |
