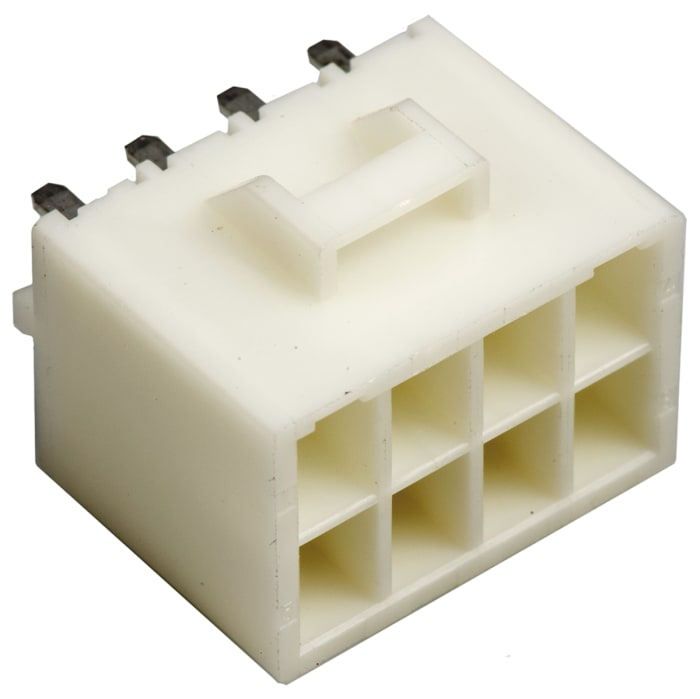

JST HL Series Straight Through Hole PCB Header, 8 Contact(s), 3.96 mm Pitch, 2 Row, Shrouded
Technical Document
Specifications
Brand
JSTProduct Type
PCB Header
Series
HL
Pitch
3.96mm
Current
7A
Number of Contacts
8
Housing Material
Polyamide
Number of Rows
2
Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Brass
Contact Plating
Tin
Minimum Operating Temperature
-25°C
Row Pitch
3.96mm
Termination Type
Solder
Maximum Operating Temperature
90°C
Contact Gender
Male
Standards/Approvals
No
Country of Origin
Japan
Product details
HL Series Connector Headers
The HL Series Connector Headers are Straight, Through Hole, Shrouded and UL94V-0 rated. The maximum Current rating is 7A AC, DC (dependant upon wire size and number of posts) for these HL Series Headers.
For mating Plug Housings see stock number 820-1040 typical.
3.96mm JST HL Series
The HL Wire-to-Wire and Wire-to-Board Connector range from JST features: a contact with a low insertion force , housing lance, inner-housing lock, secondary retainers and a panel lock construction.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 41.20
AED 8.239 Each (In a Pack of 5) (ex VAT)
AED 43.26
AED 8.651 Each (In a Pack of 5) (inc. VAT)
5
AED 41.20
AED 8.239 Each (In a Pack of 5) (ex VAT)
AED 43.26
AED 8.651 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
5
| Quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 120 | AED 8.239 | AED 41.20 |
| 125 - 495 | AED 7.008 | AED 35.04 |
| 500 - 1245 | AED 6.634 | AED 33.17 |
| 1250 - 2495 | AED 6.206 | AED 31.03 |
| 2500+ | AED 5.778 | AED 28.89 |
