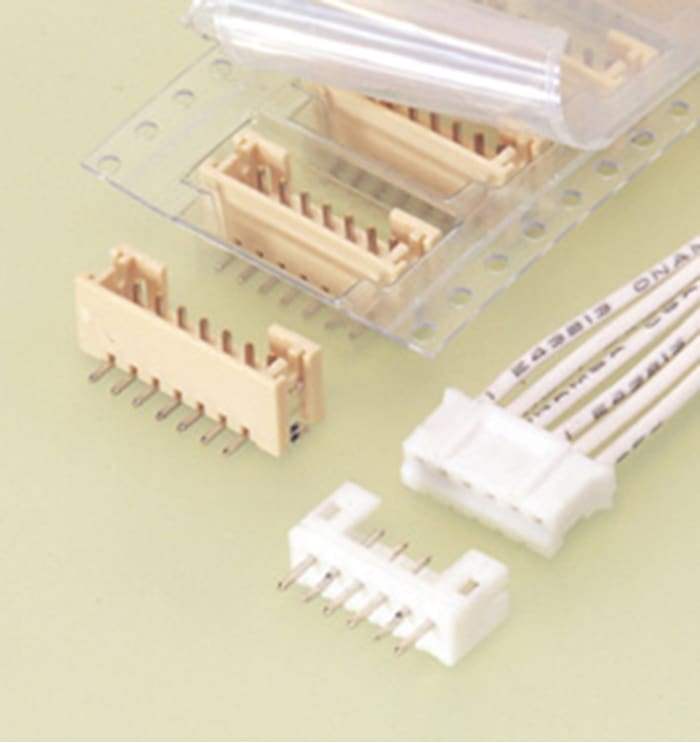

JST PH Series Right Angle Through Hole PCB Header, 3 Contact(s), 2 mm Pitch, 1 Row, Shrouded
Technical Document
Specifications
Brand
JSTSeries
PH
Product Type
PCB Header
Pitch
2mm
Current
2A
Number of Contacts
3
Housing Material
Polyamide
Number of Rows
1
Orientation
Right Angle
Shrouded/Unshrouded
Shrouded
Connector System
Wire-to-Board
Mount Type
Through Hole
Contact Material
Copper Alloy
Minimum Operating Temperature
-25°C
Row Pitch
2mm
Termination Type
Solder
Contact Gender
Male
Tail Pin Length
3.4mm
Maximum Operating Temperature
85°C
Standards/Approvals
No
Voltage
800 V
Country of Origin
Malaysia
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
AED 9.63
AED 0.963 Each (In a Pack of 10) (ex VAT)
AED 10.11
AED 1.011 Each (In a Pack of 10) (inc. VAT)
10
AED 9.63
AED 0.963 Each (In a Pack of 10) (ex VAT)
AED 10.11
AED 1.011 Each (In a Pack of 10) (inc. VAT)
Stock information temporarily unavailable.
10
| Quantity | Unit price | Per Pack |
|---|---|---|
| 10 - 240 | AED 0.963 | AED 9.63 |
| 250 - 490 | AED 0.802 | AED 8.02 |
| 500 - 990 | AED 0.749 | AED 7.49 |
| 1000 - 2490 | AED 0.696 | AED 6.96 |
| 2500+ | AED 0.642 | AED 6.42 |
